Instead of Shanghai Tangshan instrument sulfur hexafluoride gas leak detector

发布时间：2017-06-02 来源：ydlcb 浏览次数：44次

Sulfur hexafluoride gas leak detector is our company's new replacement of Tangshan instrument factory products. The product has the characteristics of high sensitivity, good stability, fast response, the probe will not be poisoned, does not produce toxic gas and so on. And liquid crystal display gas concentration, so that the instrument reading more convenient and accurate.

When the air contains different concentrations of sulfur hexafluoride gas or other halogen gas, the degree of ionization of the mixed gas under the action of high frequency electromagnetic field will also be different, the instrument is manufactured according to the above principle.

Sulfur hexafluoride gas leak detector is mainly suitable for electric power, railway, electrical appliance manufacturing, chemical, fire equipment and atomic physics research departments to fill with sulfur hexafluoride or other halogen gases (such as: fluorine, chlorine, bromine, iodine and 1211, freon F11, F12, F13, F22, etc.) equipment, containers for leak detection, can quickly and correctly qualitative and quantitative detection.

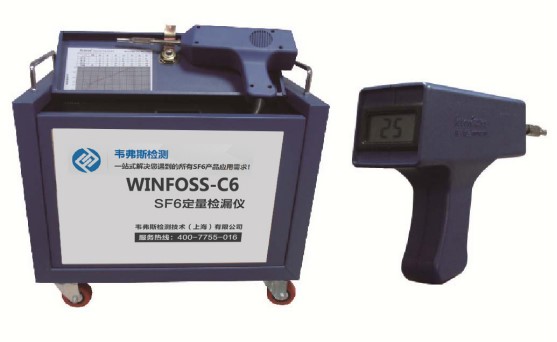

SF6 quantitative leak detector (Winfoss-C6) adopts the principle of high frequency magnetic field research and development, low pressure high frequency ionization mode, the product has no radiation source, safe and reliable, durable, with the following characteristics

A. Simple user re-calibration function.

B. Effectively prevent "poisoning" and dust oil pollution; The detector has no wearing parts, and the daily maintenance cost is very low.

C. Automatically detect the vacuum degree and judge the boot environment, and automatically open the "fool" operation mode of the detector; After the vacuum pump is turned on for about 5 minutes, the detector automatically enters the on state.

D. The unique fault detection schematic point can quickly and simply determine whether the equipment is normal or not and whether the user is using it correctly; And simple troubleshooting methods; Effectively reduce after-sales service, convenient for users.

E. Vacuum pump more stable pumping flow and vacuum degree, more stable detection data, consistency, repeatability.

F. The important components are imported with original packaging, which meets the requirements of aerospace and military products; Meet the high humidity above 95% and ultra-wide ambient temperature 5℃~50℃.

Application situation

SF6 quantitative leak detector (Winfoss-C6) is mainly used in high pressure SF6 equipment gas leakage quantitative measurement and leak point search. The instrument does not have many limitations in registration, storage and transportation that leak detectors with built-in radiation sources based on the local vacuum anion capture detection principle face, nor does it require high purity argon. It has the following characteristics in practical application.

A. No radiation detector.

B. No need for high purity argon or other pressure gases.

C. Sensitive sensor technology, probe removable.

D. Easy to operate, no training required, boot automatic adjustment, direct detection can be.

E. Even severe leaks (99.99%SF6) will not contaminate or damage the detector.

F. Transportation: All accessories are placed in a steel carrying case.

G. Sensitive sensor technology.

H. A flow sensor checks the detector for blockage for a long time and displays alarm information.

I. Sampling method: pump automatic sampling.

Technical parameter

Detection principle	High frequency magnetic field low pressure ionization
Measurement accuracy	≥10-8, SF6 at a concentration of 0.01ppm can be detected
Measuring range	0.01 parts per million - 10000 PPM
Response time	No more than 1 second, that is, 100 PPM of gas
sensitivity	1 x10 8 cc/SEC, the 0.01 parts per million
Indication mode	Liquid crystal digital display, the greater the leakage concentration, the greater the change in the number, while the buzzer sound frequency change
Continuous working time	Generally no more than 8 hours
Vacuum hose	4 m (Towed length 6 m)
Power input line	2 m (Towed length 6 m)
Input power supply	220V±22V 50Hz±2Hz
power	250 W
External dimension	430×275×429mm (L * W * H)
package	Foam carton
weight	About 15.5KG
