SF6 Trace Moisture Tester (Winfoss-C1)
发布时间：2024-07-10
来源：ydlcb 浏览次数：25次

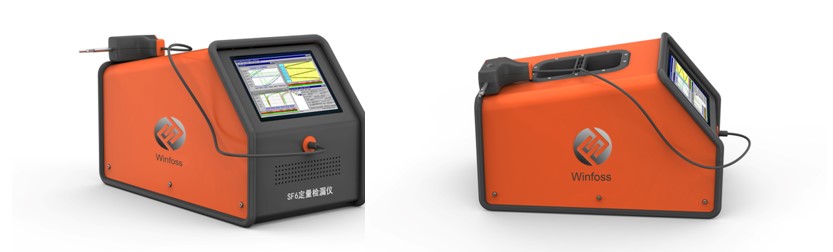

SF6 Gas Leak Detector (Winfoss-C1)
0.01PPm high precision quantitative leak detection, imported quality; Touch screen control and display, easy to operate; Low voltage high frequency ionization principle, molecular level measurement!
Product introduction
SF6 gas trace leak detector (Winfoss-C1) adopts the principle of high frequency magnetic field development, low pressure high frequency ionization mode, the product has no radiation source, safe and reliable, durable, with the following characteristics:
l Touch screen control and display, concentration using ppm display mode, accurate quantitative 0.01ppm.
l Simple user re-calibration function.
l Effectively prevent "poisoning" and dust oil pollution; The detector has no wearing parts, and the daily use and maintenance cost is very low.
l Automatically detect the vacuum degree and judge the boot environment, and automatically open the "fool" operation mode of the detector; After the vacuum pump is turned on for about 5 minutes, the detector automatically enters the on state.
l Unique fault detection schematic point, can quickly and simply judge whether the equipment is normal or not and whether the user is correctly used, as well as simple troubleshooting methods; Effectively reduce the amount of after-sales service, convenient customer operation and maintenance.
l Vacuum pump more stable pumping flow and vacuum degree, more stable detection data, consistency, repeatability.
l components meet aerospace requirements; Meet the high humidity above 95% and ultra-wide ambient temperature :-20℃~50℃.
lThe outer packaging adopts metal anti-collision box design, which is convenient to carry on site use.
l Customizable services available.
l Lithium inverter power supply for up to 3 hours.
l Integrated gas and electrical hose for 4-10 meters of detector.
l Scalable remote transmission and data printing capabilities.
Technical parameter
l Detection principle: low voltage high frequency ionization
l Response time: <1s, clear <1s
l Power supply: 85-265VAC
l Portable use: It can be used for 10 hours after charging
l Portable detection gun: 0.563Kg
l Weight: 5.4Kg
lCable length: extended to 5 meters
l Calibration: Portable SF6 calibration source
l Design standard: CE,ISO9001
l Printer interface: standard 9-pin serial connection
lInstrument size: 340*350*170mm
l Sensitivity: 1x10~-7cc/sec,0.01ppm; 0.2 gm/yr
Product application

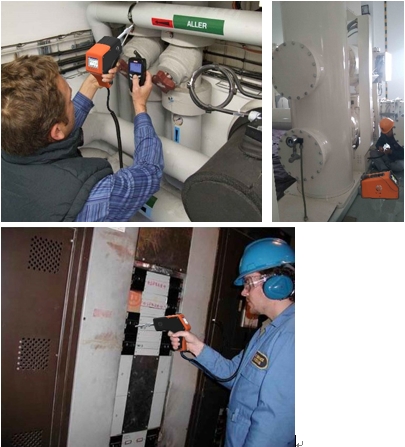

SF6 Trace moisture tester (Winfoss-C1) is mainly used in the quantitative measurement of gas leakage and leak point finding of high pressure SF6 equipment. The instrument does not have many limitations in registration, storage and transportation of leak detectors with built-in radiation sources based on the principle of local vacuum negative ion capture detection. It has the following characteristics in practical application:
l No need for high purity argon or other pressure gases.
l Sensitive sensor technology, probe removable.
l Display units: cc/sec,gm/yr and ppm.
l Touch screen Help menu.
l Lightweight three-button hand-held probe gun.
l Data storage and printing.
l Easy to operate, no training required, boot automatic adjustment, direct detection can be.
l Even severe leaks (99.99%SF6) will not contaminate or damage the detector.
l Transport: All accessories are placed in a steel carrying case.
l The touch screen is easy to use, and various Settings can be made from the menu; Including real time, date, user identity, etc., can be used for instrument self-diagnosis.
l Three-key operation, data storage and printing in a single touch.
l Sensitive sensor technology.
l A flow sensor constantly checks the detector for blockage and displays an alarm message.
l Product configuration
l A master leak detector
l A hand-held probe gun
l One set of 5 m connection cables
l A set of operating instructions in Chinese
