WFS-S1-SYD type infrared SF6 gas sensor module

发布时间：2019-10-03 来源：ydlcb 浏览次数：30次

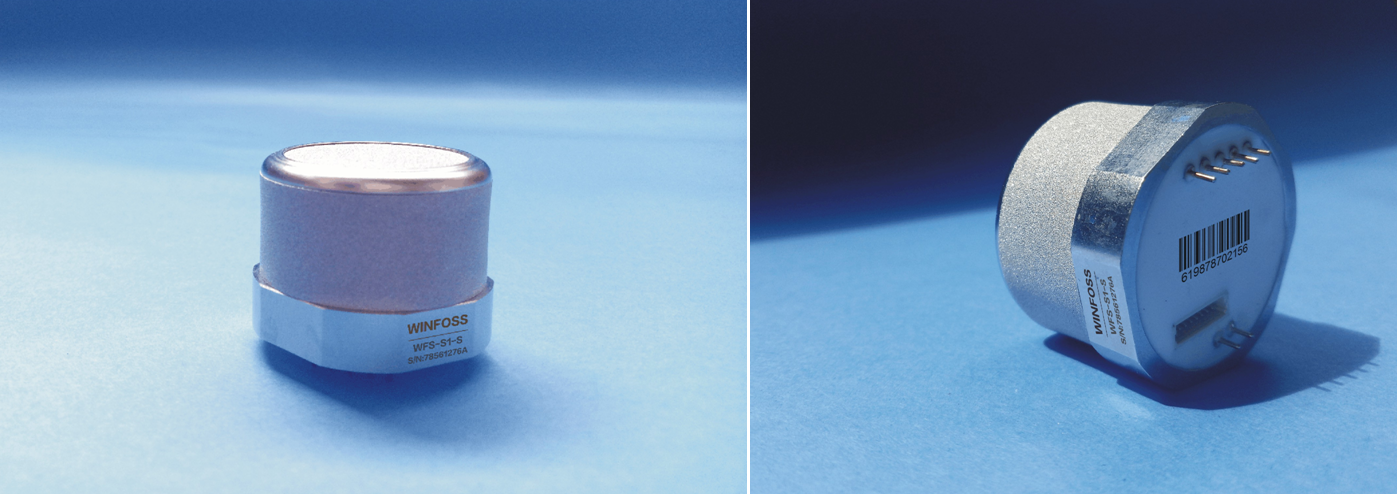

WFS-S1-SYD type infrared SF6 gas sensor

SF6 infrared sensor WFS-S1-SYD sulfur hexafluoride sensor is an infrared gas sensor based on single light source double beam non-dispersive infrared measurement technology (NDIR), which is specially designed for SF6 leak detection. Advanced infrared sensors with superior linearity and repeatability ensure long-term stable and reliable measurements.

The WFS-S1-SYD-SF6 sensor is highly selective to gases, and is not interfered by gases such as H2O, alcohol, and CO2. And the sensor has long service life and is maintenance-free.

The WFS-S1-SYD sulfur hexafluoride sensor is compact and can be quickly and easily integrated into gas monitoring and control systems.

When the WFS-S1-SYD sulfur hexafluoride sensor is preheating or in the measuring environment of condensation, the sensor will give a fault reading to avoid false alarm of the system. Normal readings begin after the preheating is complete or after recovery from condensation.

SF6 infrared sensor (WFS-S1-SYD) based on dual-beam dual-wavelength infrared measurement technology and high-precision digital processing technology, is widely used in high voltage switch GIS room SF6 gas leak monitoring (0 ~2000ppm) and SF6 purity analyzer (0 ~ 100%). Internal integrated complete automatic drift control and temperature compensation circuit.

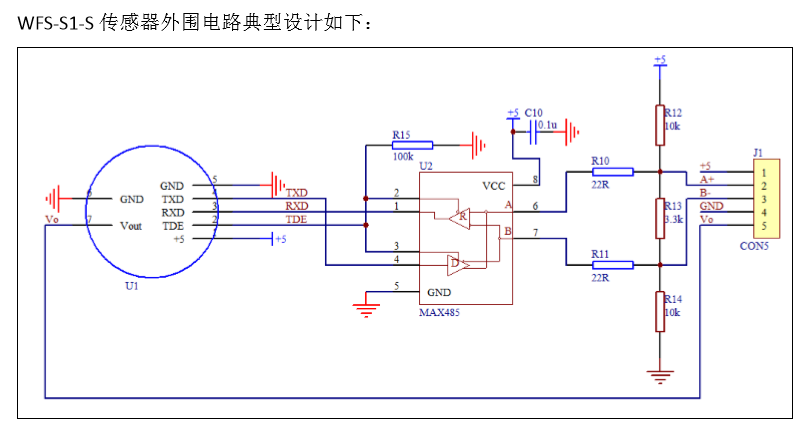

SF6 infrared sensor (WFS-S1-SYD) adopts dual beam non-spectral infrared (NDIR) detection technology, which is resistant to other gas interference, easy maintenance, good stability, and built-in temperature compensation. Standard Modbus RTU protocol, digital output and analog output optional advantages. It is suitable for SF6 leak alarm, on-site construction protection, single gas precision analysis, online monitoring, industrial process analysis and other applications.

The WFS-S1-SYD sulfur hexafluoride sensor features a unique light-free cell NDIR technology with a highly breathable stainless steel housing and an external oxygen sensor with a digital signal output. Because it is designed for SF6 specific wavelength, it is resistant to other gas interference, does not require air pump pipeline, small size, strong corrosion resistant shell, easy to use and maintain, can upload and output sulfur hexafluoride content and oxygen content at the same time, and is suitable for leak alarm, environmental detection, online monitoring, gas composition analysis and other applications.
