Winfoss Xi 'an Metro SF6 gas detection and alarm device application project

发布时间：2019-12-05 来源：ydlcb 浏览次数：38次

Wevers Xi 'an Metro Operation Branch 2019 SF6 gas detection alarm device maintenance project in main substation of Line 1, 2 and 3

SF6 gas is widely used in medium and high pressure equipment, and its safety has been widely concerned by people. SF6 gas is heavier than air, and tends to gather in the low area after leakage, which is easy to cause hypoxia in the lower space. In addition, SF6 gas generates harmful and toxic gases after high-temperature reaction in the insulator and metal substances inside the electrical equipment. Once the leak is a great threat to the atmospheric environment and personal safety, Therefore, in the "DLT 639-1997 sulfur hexafluoride electrical equipment operation, test and maintenance personnel safety protection rules" chapter 4 requirements and "JBT 10893-2008 high-voltage combination electrical distribution room sulfur hexafluoride environmental monitoring system", "State Grid Company 18 major anti-accident measures" requirements. An oxygen meter and an SF6 gas alarm meter should be installed in the SF6 distribution device area to ensure the safety of on-site workers.

I. Project name

Maintenance project of SF6 gas detection alarm device (including probe) in main substation of Line 1, 2 and 3 of Xi 'an Metro Operation Branch in 2019

Ii. Project overview

This project mainly conducts maintenance and functional testing of SF6 gas detection and alarm devices in four main substations in the first and second lines, tests the functions of SF6 gas detection and alarm devices in line 3, and verifies the accuracy of the functions. It can restore SF6 concentration status, oxygen concentration, timed ventilation, SF6 concentration and oxygen abnormal automatic ventilation, forced ventilation, voice function, flute sound and sound and light alarm functions at each monitoring unit in the real-time monitoring switch (GIS) room.

Line 1 Jinhua main substation, Line 1 Huancheng Xiyuan main substation, Line 2 Administration Center main substation, Line 2 Exhibition Center main substation, Line 3 Bowen Road main substation, Line 3 Wuzhuang main substation The SF6 gas detection and alarm device produced by Jiangyin Technology Co., Ltd. failed after years of installation and use. The SF6 gas and oxygen concentration in the environment cannot be properly monitored, the SF6 monitoring host cannot display the uploaded data of each monitoring unit, and some functions cannot operate normally, which poses great risks to the personal safety of inspection personnel and equipment operation.

From November 27, 2019 to December 4, 2019, Weavers Testing Technology installation service personnel will work in Line 1 Jinhua Main Substation, Line 1 Huancheng Xiyuan Main Substation, Line 2 Administrative Center main substation, Line 2 Exhibition Center main substation, This includes the removal of SF6 monitoring host, SF6 and oxygen monitoring unit, temperature and humidity monitoring unit and related communication transmission cables of each station, and the installation and power-on testing of the newly purchased SF6 monitoring host and monitoring unit.

The main substation of Bowen Road of Line 3 (replace the host of SF6 monitoring system) and verify each monitoring unit.

Functional test of SF6 gas detection and alarm device in main substation of Wuzhuang main Substation of Line 3 and calibration of monitoring unit.

First, Line 2 SF6 gas detection and alarm device maintenance content:

The SF6 gas detection and alarm device of Jinhua main substation, Huancheng Xiyuan main substation, Administrative center main substation, Exhibition center main substation, Bowen Road main substation has achieved the following functions after maintenance and replacement:

1. Realize the normal display of SF6 gas detection and alarm device monitoring information; Can dynamically display the SF6 concentration status and oxygen content at each monitoring unit in the switch (GIS) room, when the concentration exceeds 1000ppm (national standard value, users can set their own), SF6 concentration status red warning, otherwise green display normal value.

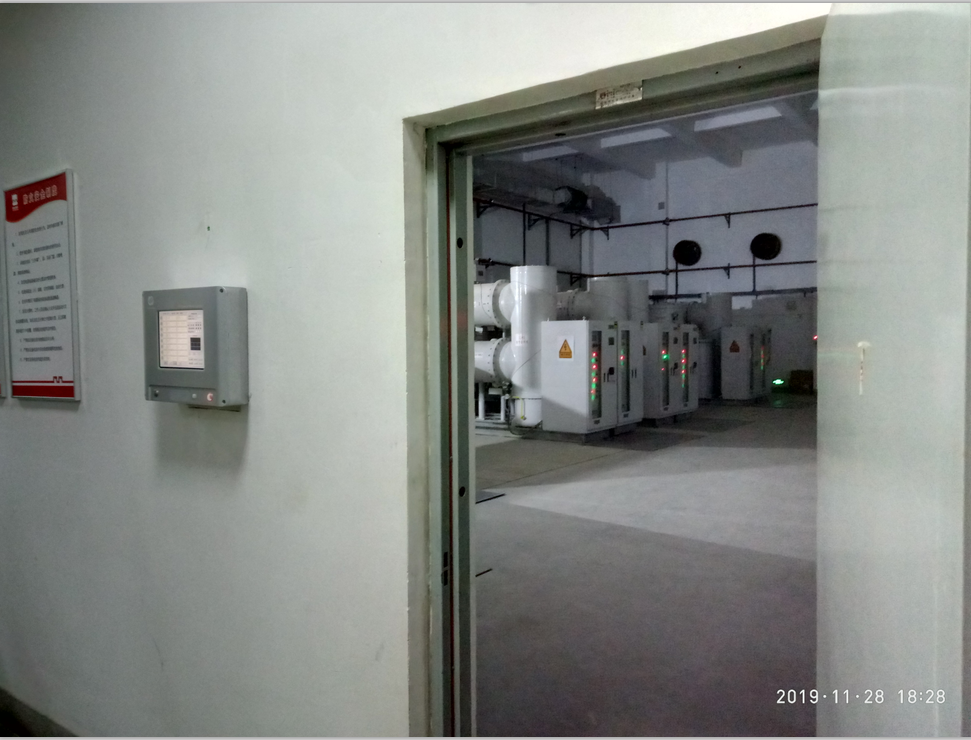

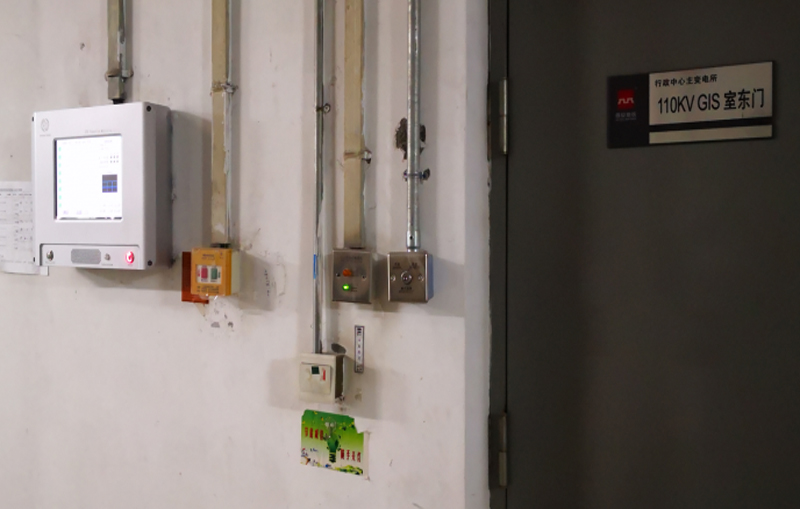

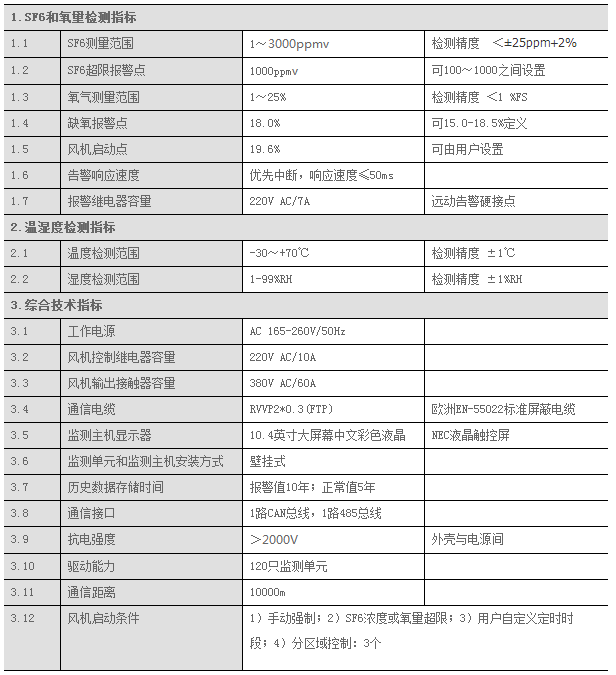

Product parameters:

When the oxygen is below 18.0% (national standard value, user can set it by themselves), the oxygen value in red font prompts, otherwise the actual value (such as 20.5%) is displayed in normal color;

2. Detect the timing ventilation function of the SF6 gas detection and alarm device, and the on-demand ventilation function can be normal;

3. 18% standard oxygen and 1000PPm standard sulfur hexafluoride gas sources were used to test the SF6 and oxygen monitoring unit of the main transformer station of Jinhua Road. After the test, the uploading and display of the monitoring information of the SF6 gas detection alarm device was normal, and the temperature and humidity monitoring was normal;

4. Check that the voice prompt function is normal.

5. The infrared sensing function of the human body is normal;

(2) Test results of SF6 gas detection and alarm device in main substation of Wuzhuang Main Substation of Line 3

1. The detected SF6 gas detection and alarm device has no timing ventilation function, that is, it cannot set a time period to start ventilation within 24 hours throughout the day;

2. After detection, the monitoring host of SF6 gas detection alarm device can normally display the display value of each monitoring unit in the GIS switch room.
