SF6 concentration online monitoring system Huaneng

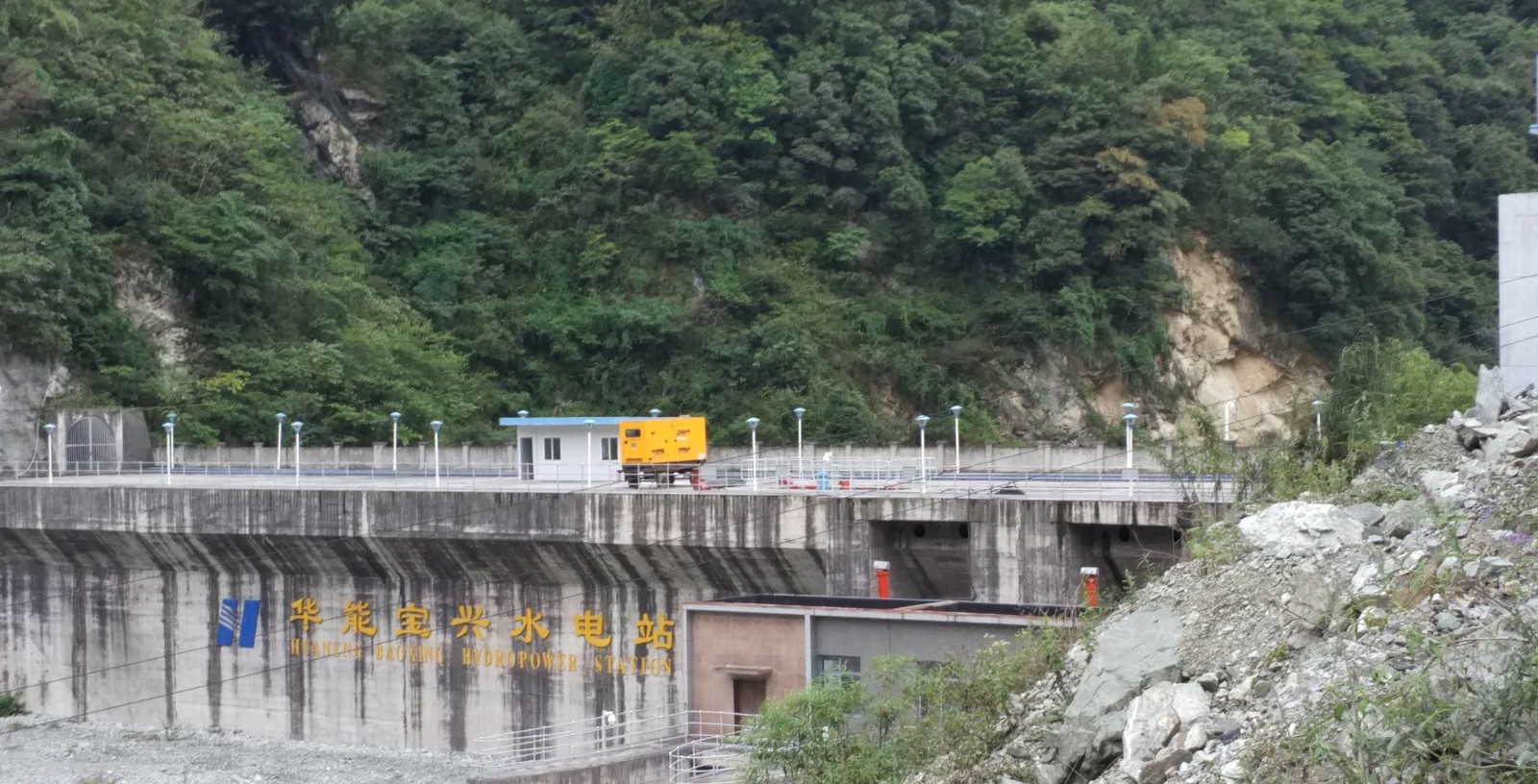

China Huaneng Group Company Sichuan Ya 'an civil water Control Baoxing River Power Station is located in Baoxing County, Ya 'an district, Sichuan Province, on the East River, for the Baoxing River cascade development of the second level. The site of the dam is located near Shimenkan, about 7km upstream of Beizhuzhai Township, Baoxing County, and the site is located near Dengchigou, about 1km downstream of Beizhuzhai Township, Baoxing County, about 23km away from Baoxing County.

The GIS equipment of Baxinghe 220kV power Station in Minzhishuishu is produced by TBEA - Zhongfa Shanghai High Voltage Switch Co., LTD. In March 2016, Weaves Testing successfully signed with the company SF6 concentration online monitoring system (Winfoss-S1), SF6 gas recovery device and SF6 vacuum pumping device and other testing equipment.

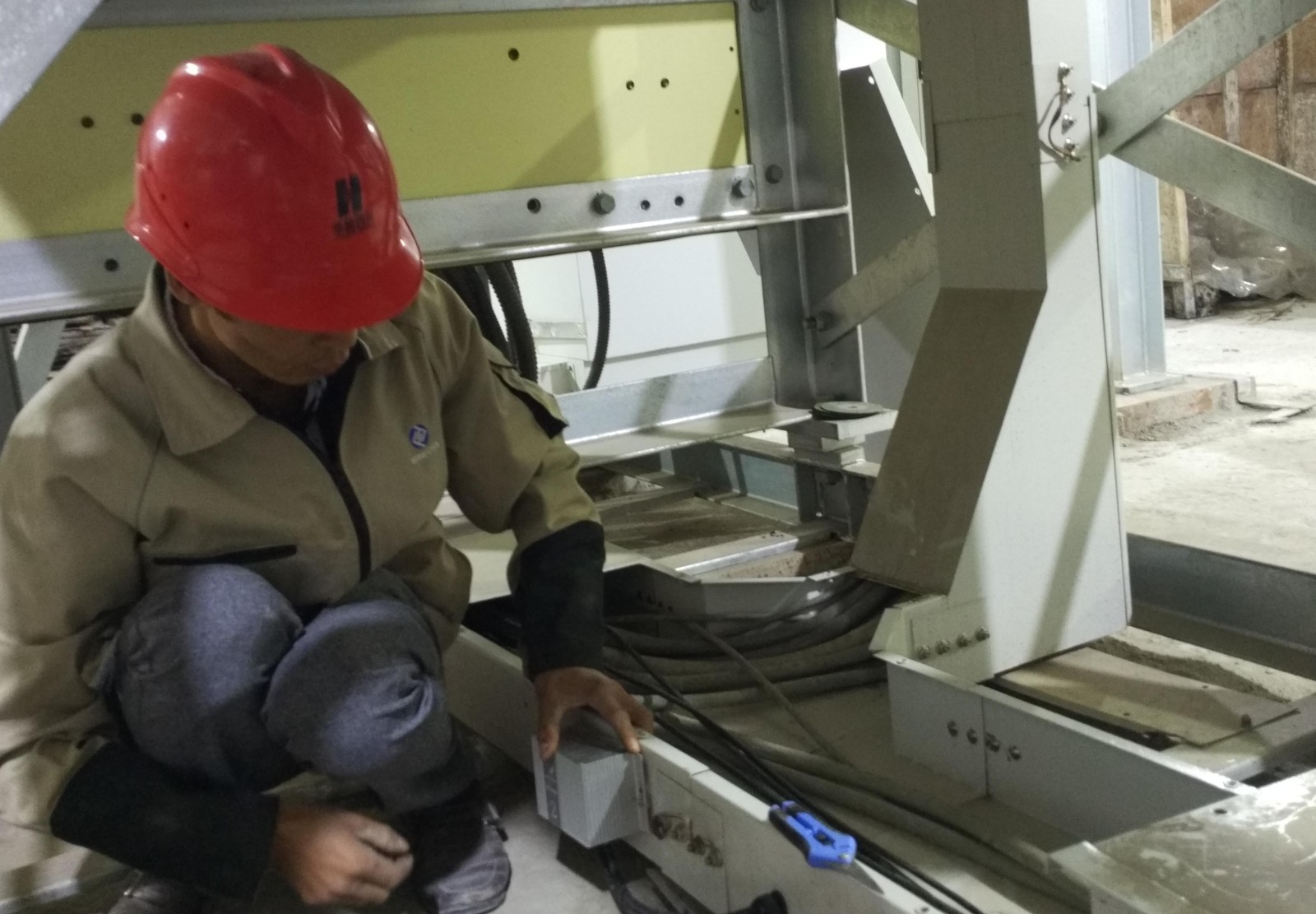

The relevant technicians of Zhongda Shanghai High Voltage Switch Company worked hard for four months to install the equipment, and planned to complete the installation of all the equipment in the GIS room by the end of September. The customer service department of Weavers Company sent two technicians to install the SF6 concentration online monitoring system in mid-September, and successfully completed the installation of the entire system after four days of construction and installation. And passed the inspection and acceptance of the relevant person in charge of the station, and got the praise of the leader of the power station.

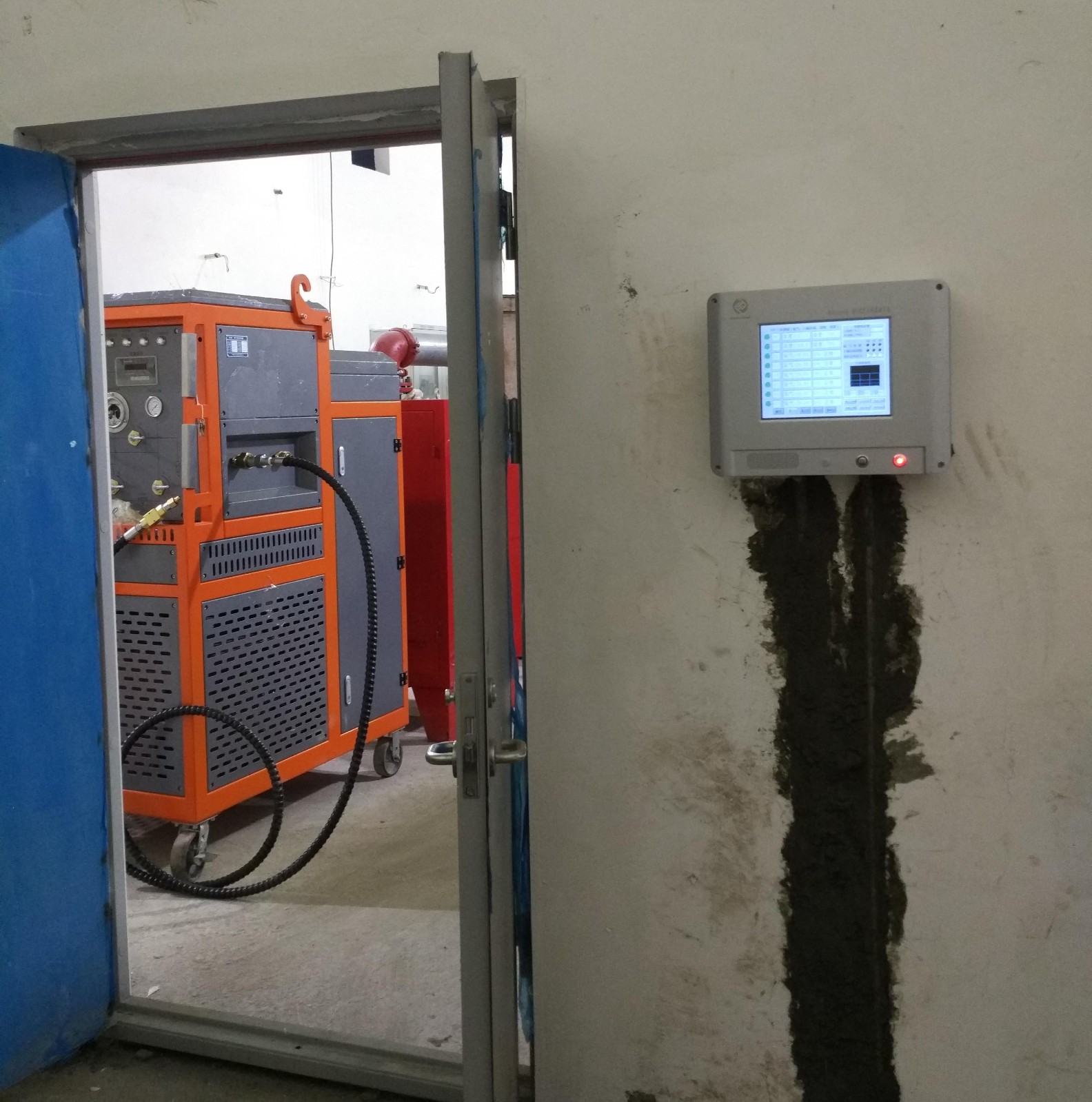

The GIS room of the power station adopts SF6 concentration online monitoring system, which is a comprehensive solution to monitor SF6 concentration, oxygen content and temperature and humidity. Provides both real-time alarm and data store query functions. The simple operation panel of the system and the LCD dynamic display make it easy for users to master all the operation and use of the system. The gas concentration state at the GIS equipment is monitored in a real-time and dynamic manner. The organic combination of the entire system leaves the user with minimal maintenance steps and costs. The system monitors the environment dynamics of GIS switch room 24 hours a day and creates a good safe environment for GIIS switch room.
