UHF steep pulse signal generator
Product overview

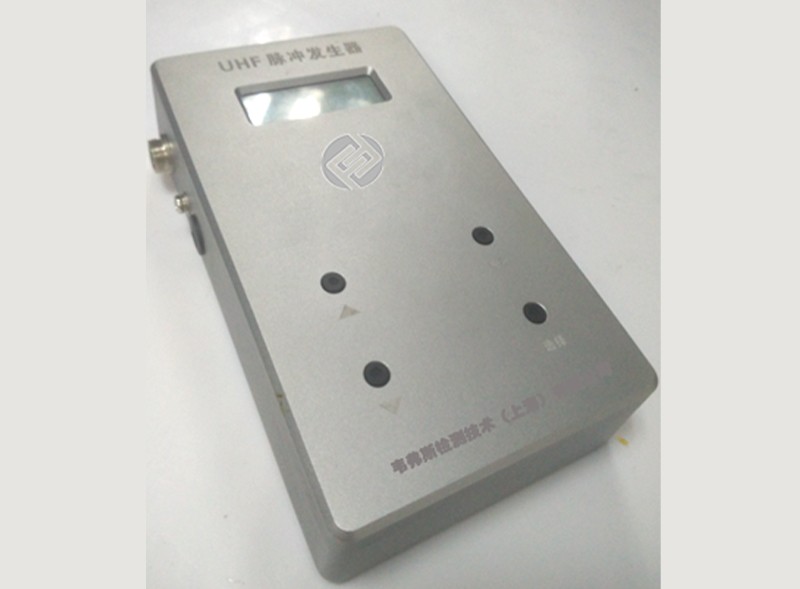

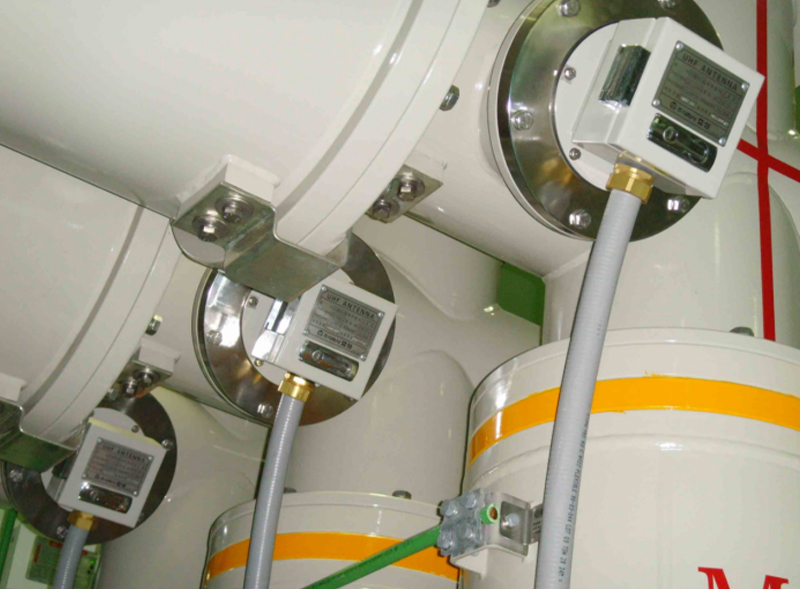

UHF steep pulse signal generator (WFS-X6G-SG) is designed according to the characteristics of GIS internal local discharge pulse signal, can output the standard pulse signal with rising edge ≤500ps, has the characteristics of pulse output document, good portability, etc., used to test the performance of UHF local discharge detection instrument, with superior comprehensive performance.
Product characteristics
Specialized pulse source
The equipment can be amplitude-modulated, interval p-second pulse source, pulse amplitude, repetition frequency can be adjusted, stable performance.
Phase synchronization
The instrument has the function of synchronous input, and can output the pulse signal with the same frequency as the external synchronous voltage.
Liquid crystal display
The instrument can display the current pulse voltage, frequency and battery power in real time.
Time off
The instrument has a timed shutdown function. If no operation is performed for 5 minutes, the instrument will automatically shut down.
Easy to operate
The instrument is battery powered, as well as small, overall light weight, easy to operate, suitable for field use in laboratories and substations.
Technical parameter
Output waveform: steep pulse signal
Output pulse rising edge (20%-80%) : ≤500PS
Output pulse repetition rate: 20HZ-200HZ
Output voltage range :6-60V
Pulse width: 20-200ns
Dimensions: L188mm*W114mm*H300mm
Application principle
The steep pulse generator is composed of MCU board, keyboard board, LCD display, AC signal input processing board, charge power supply and battery management board, avalanche voltage source, steep pulse generator board, lithium battery pack, etc.
The MCU board is the main control board, the keyboard board and the LCD display constitute the man-machine interface, and
