SF6 High Speed Recovery Unit (Winfoss-R1Eco)
SF6 High speed recovery vehicle
Supported platform: Windows/Linux/Unlix
Software size: 10M
Brand: WINFOSS
Model: Winfoss-R1Eco
Vacuum pump: 40m3/h, final vacuum <1mbar.
Oil-free vacuum compressor: 10m3/h, the final vacuum <33 mbar.
SF6 Oil-free compressor: 15m3/h, exhaust pressure 50ba.
Drying filtration method: vacuum heating activation regeneration.
Operation mode: automatic control.
产品详情/ Product details

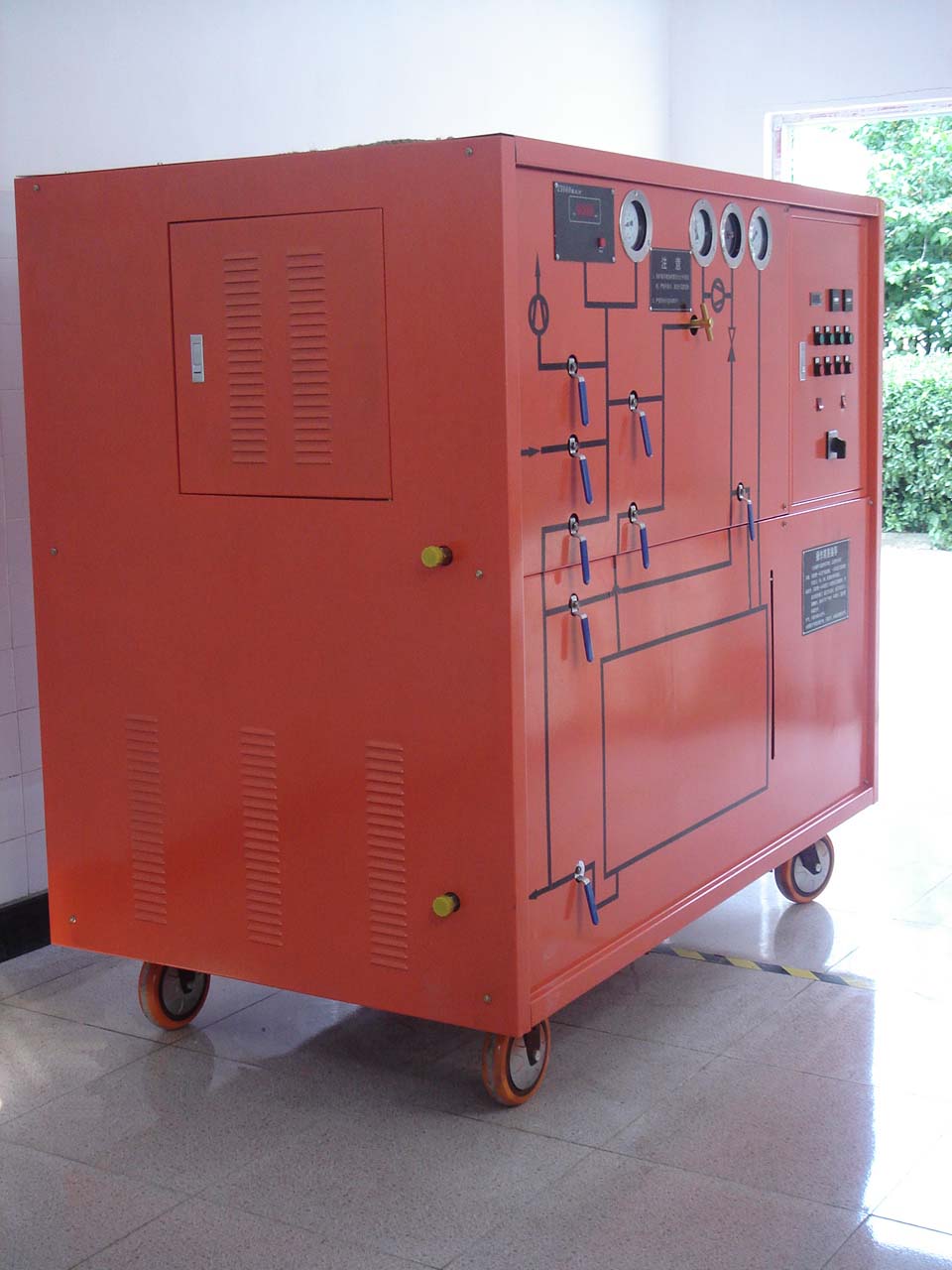

The SF6 High Speed Recovery Unit (Winfoss-R1Eco) is a moderate capacity, full function, compact structure, SF6 compressor is completely oil-free, greatly reducing the cost of processing and filtration, the application of this technology to meet the high voltage electrical switch manufacturers and the power industry for high safety requirements in the production process. The whole device includes: oil-free SF6 compressor, vacuum compressor, vacuum pump, digital vacuum meter, electromagnetic vacuum device, low temperature condensing device, regenerative filter dryer, high pressure solenoid valve, instrumentation, safety controller, etc. The main components are imported.
SF6 High Speed Recovery Unit (Winfoss-R1Eco)
Imported negative pressure oil-free compressor, high pressure liquefaction technology, more powerful recovery function; Imported regenerative molecular dryer filter, efficient removal of moisture and dust; One touch, easy and automatic recovery, filling and vacuuming functions!
The SF6 High Speed Recovery Unit (Winfoss-R1Eco) is a moderate capacity, full function, compact structure, SF6 compressor is completely oil-free, greatly reducing the cost of processing and filtration, the application of this technology to meet the high voltage electrical switch manufacturers and the power industry for high safety requirements in the production process. The whole device includes: oil-free SF6 compressor, vacuum compressor, vacuum pump, digital vacuum meter, electromagnetic vacuum device, low temperature condensing device, regenerative filter dryer, high pressure solenoid valve, instrumentation, safety controller, etc. The main components are imported.
Functional characteristics
l SF6 special closed compressor, no leakage.
l High pressure plus condensation liquefaction technology, so that the recovery speed is faster.
l Double stage single vane vacuum pump, fast vacuum pumping speed.
l Multiple safety valve Settings, eliminate safety hazards.
l Imported nano filter device, no need to frequently change the adsorbent.
l The interface is simple and clear, the operation is simple.
l Liquid or gas recharge.
l Gas tank liquid storage.
lRecycling
The SF6 gas in the equipment is extracted by starting the electrical control components such as the high-precision vacuum pump and the electromagnetic vacuum device.
lPurification
A complete set of purification device is built in to purify the recovered SF6 gas through repeated drying, filtration and separation.
l Vacuum extraction
The residual gas in SF6 switch body through the electromagnetic vacuum device and driving device, etc., start the pressure return difference, so that SF6 switch body to meet the standard requirements of the vacuum state.
l Aeration
A certain amount of SF6 gas is added to the electrical equipment through the compressor and drive device in the starting device, and the inflation capacity is set according to the equipment regulations.
l Liquefaction
The extracted SF6 is liquefied directly through the SF6 high-pressure compressor and stored in the gas storage tank or directly pressed into the cylinder.
l L-transfer
The equipment can store the gas in the tank for a long time, and the SF6 gas can be transferred to the cylinder according to the practical application.
Device performance parameter
type type | Air cooling,push-type | |
Operating ambient temperature | -20℃ to 55℃ | |
recycle | Initial pressure(MPa) | 0.8 |
Final pressure(KPa) | ≤53 | |
Time required for 1m3 volume (h/m3) | ≤0.45 | |
aeration | Initial pressure(Pa) | ≤133 |
Final pressure(MPa) | ≤0.7 | |
Time required for 1m3 volume (h/m3) | ≤0.2 | |
Vacuum from 0.1MPa to 133Pa takes time (h/m3) | ≤0.5 | |
Extreme limit true space (Pa) | ≤10 | |
Vacuum holding133Pathe24Hourly appreciation(Pa) | ≤400 | |
years drain leakage The rate of | ≤0.5% | |
After recoverySF6 | hydration(PPM/V) | ≤40 |
Gas purity | Oil content(PPM/G) | ≤8 |
storage save let device | Storage mode | Liquid state |
stress(MPa) | 3.9 | |
volume(L) | 300 | |
Liquid storage capacity(kg) | 300 | |
Vaporization mode | Electric heating | |
Regeneration method of dryer filter | Vacuum heating activation regeneration | |
Power source | Three-phase four-wire system 3Φ 380V | |
Gross power(kW) | ≤13 | |
noisedB(A) | ≤75 | |
Dead weight of equipment(kg) | ≤950 | |
Main component performance parameters
SF6 Compressor (American Valley Wheel) | form | Oil piston,semi-enclosed | |
Air displacement | m3/h | 12.2 | |
Maximum exhaust pressure | MPa | 2.50 | |
Allowable exhaust pressure | MPa | 1.96 | |
Minimum allowable inspiratory pressure | KPa | 53 | |
Maximum allowable inspiratory pressure | MPa | 0.30 | |
Maximum exhaust temperature | ℃ | 130 | |
Lubricating oil | HD25 refrigerant oil | ||
power | kW | 3 | |
Power source | 3Φ 380V 50Hz | ||
Vacuum pump (Leybold, Germany) | Pumping rate | m3/h | 60 m3/h |
Limiting vacuum | Pa | ≤6 * 102 - | |
power | kW | 3.2 | |
Power source | V | 3Φ 380V 50Hz | |
Refrigerating unit (American Valley Wheel) | Standard refrigerating capacity | Kcal/h | 4600 |
refrigerant | R22 | ||
Maximum amount of refrigerant to be charged | kg | 2.5 | |
Lubricating oil | HD25 refrigerant oil | ||
power | kW | 2.32 | |
Power source | 3Φ 380V 50Hz | ||
let device Insulating carbon steel Qualification certificate included | Container class | Second class | |
Design pressure | MPa | 5.0 | |
Design temperature | ℃ | 40 | |
Storage container volume | L | 300 | |
The amount of liquid in the storage vessel | kg | 300 |
Standard configuration
l SF6 medium high speed recovery vehicle (Winfoss-R1Eco)
l 5m high pressure conveying pipe (liquid conveying)
l 5m low pressure conveying pipe (gaseous conveying) 1 piece
l 1 set of converters for recovery car and switchgear
l Cylinder connector 1 piece
l Dust and rain cover 1
l 1 Chinese manual
l Factory inspection report and other user data 1 set
