SF6 Gas Mask (Winfoss-G11)
Gas mask
Supported platform: Windows/Linux/Unlix
Software size: 10M
Brand: WINFOSS
Model: Winfoss-G11
Air leakage coefficient: less than 0.05%.
Air tightness of exhalation valve: more than 45 seconds.
Actual harmful space: less than 230 ml.
Air tightness: no bubbles escape within 1 minute, and the tank has a sealed package.
Adsorption rate: The concentration of standard gas S2F10O is 5200PPMv
产品详情/ Product details
SF6 gas mask (Winfoss-G11) is a single-eye mask filter type gas mask, a personal protective equipment, which is specially introduced for the personal safety of SF6 electrical equipment installation, commissioning, operation and maintenance, testing and overhaul personnel at the site. It can protect the respiratory organs, eyes and facial skin of the above personnel from toxic and harmful substances such as hydrofluoric acid, sulfur dioxide and low fluoride in SF6 high-voltage electrical appliances, and achieve effective protection. The mask has been inspected by the National Labor protection products Quality supervision and Inspection Center and has obtained a safety inspection certificate, which is in line with the relevant provisions of the national standard GB2890-82.
SF6 Gas Mask (Winfoss-G11)
Suitable for the personal protection of high voltage combination electrical equipment disintegration and overhaul,Effectively protect human respiratory organs, eyes and facial skin from damage; Can be used alone; The product is convenient and safe to wear!
summarize
SF6 gas mask (Winfoss-G11) is a single-eye mask filter type gas mask, a personal protective equipment, which is specially introduced for the personal safety of SF6 electrical equipment installation, commissioning, operation and maintenance, testing and overhaul personnel at the site. It can protect the respiratory organs, eyes and facial skin of the above personnel from toxic and harmful substances such as hydrofluoric acid, sulfur dioxide and low fluoride in SF6 high-voltage electrical appliances, and achieve effective protection. The mask has been inspected by the National Labor protection products Quality supervision and Inspection Center and has obtained a safety inspection certificate, which is in line with the relevant provisions of the national standard GB2890-82. The mask is composed of a mask and a canister. The mask can be used in direct connection with the canister. The anti-virus principle is: when the person inhales, the infected air is purified by the filter tank and then enters the human respiratory system through the mask.
The Winfoss-G11 gas mask provides superior durability and safety for difficult tasks requiring facial and respiratory protection. The standard thread design allows you to choose a variety of filter tanks to protect against gases, organic vapors and particulates according to your individual needs. After a period of use, you can also purchase SF6 special filter tank as a spare part to replace the original filter tank.
Product characteristics
l L-side screen is PC material, wide field of view with anti-scratch and anti-solvent coating, clear and distortion-free image, optional eyewear accessories.
l Good sealing, matching most people's face size.
l Silicone rubber provides comfortable wear.
l Very durable.
l Talk diaphragms facilitate communication.
l Bright blue beautiful and generous.
l Good sealing, matching most people's face size, silicone rubber to provide comfortable wear, call diaphragm convenient communication.
l Mesh headband, avoid hair clips, quick release buckle, convenient, comfortable to wear, provide greater safety and stability, suspension belt is easy to rest the mask hanging on the chest.
l Standard threaded interface enhances peripheral vision for connection to a variety of tanks, uniform weight distribution and better smooth wear.
Structural principle

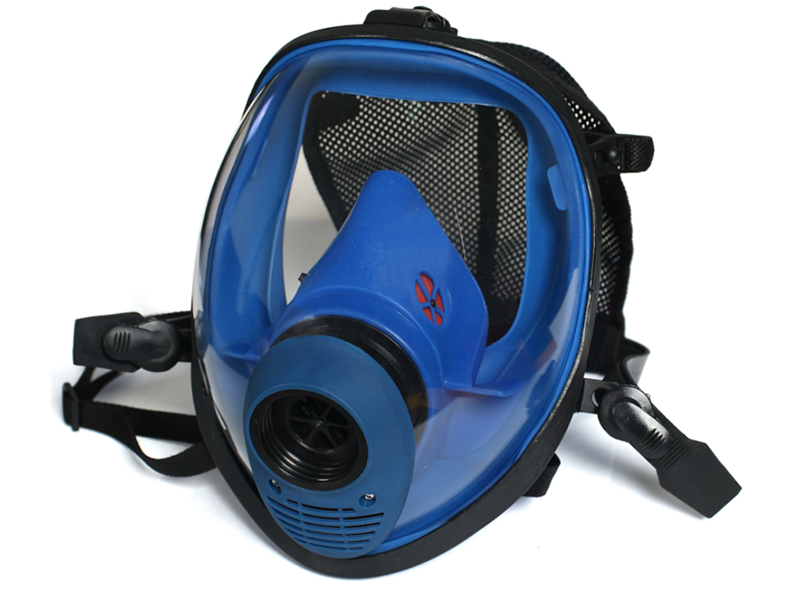

l Mask unit
The mask is a new single-eye comprehensive cover, which is composed of a cover body, a water blocking cover, a one-way check valve and a breathing talker.
The cover body is made of rubber molded as a whole, and the mask close frame adopts a folding side belt, which has a certain arc, and forms a similar air cushion tube when worn to ensure comfort and air tightness under various conditions of use. Three-dimensional headband structure, the headband ring adjustment is flexible and reliable, can be freely adjusted according to the user's head type, to meet the needs of various wearers. The eye window uses a single large lens with high light transmittance, which has a wide field of view and good visual performance. The mask is equipped with a water blocking hood and a one-way check valve. When inhaling, the air filtered through the tank enters the respiratory system through the one-way check valve of the water blocking hood. When exhaling, the one-way check valve is closed, and the exhaled humid gas is discharged from the breath valve. Improved window protection performance.
Breathing talker breath valve, suction valve, talker in one, compact structure, can be disassembled, easy to clean up stolen goods or replace. The speaker has clear sound transmission and small sound transmission loss.
l Filter tank unit
The shell of the filter tank is made of metal material, and the tank is equipped with special impregnated activated carbon and F-03 molecular brush composite adsorbent, and it is also equipped with mesh board, gauze, wool felt, which can effectively adsorb hydrofluoric acid, sulfur dioxide, sulfuryl fluoride, disulfide decafluoride, dust and other toxic and harmful substances to achieve the purpose of purification.

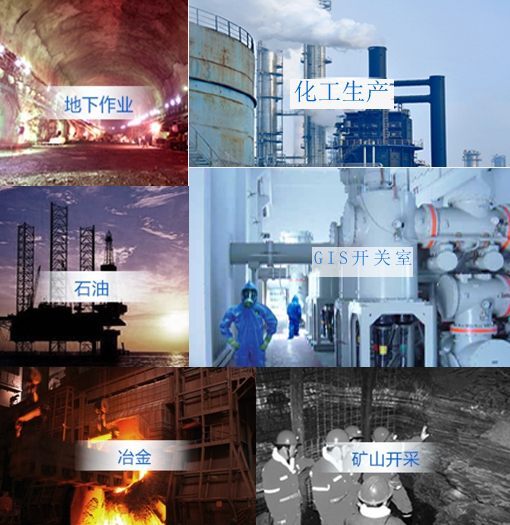

Application site

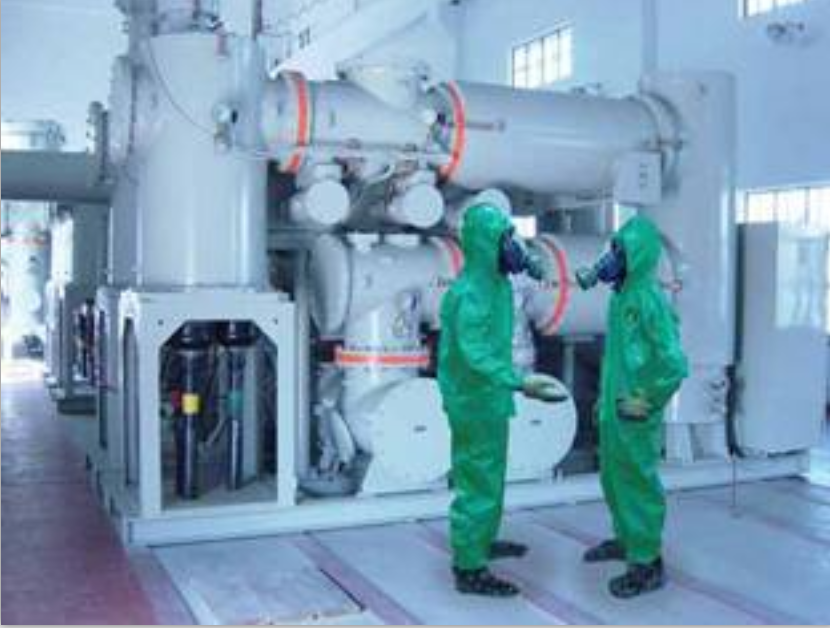

l Where SF6 equipment is available either outdoors or indoors.
l The concentration of oxygen gas in the air is not less than 18%.
l Environmental toxic gas content is not higher than 0.5%.
l The ambient temperature is -30 ~ +45℃.
l Atmospheric pressure: 85kpa-106kpa.
Technical index
Mask unit
l Appearance: Good close to the human face, no obvious pressure, the fixing system has enough toughness and strength, the parts are easy to replace.
l Air leakage coefficient: less than 0.05%.
l Exhalation valve air tightness: more than 45 seconds.
l Actual harmful space: less than 230 ml.
l Viewing Angle: total visual field is greater than 75%; Binocular vision greater than 60%; Below view greater than 40 degrees.
The canister unit
l Air tightness: no bubbles escape within 1 minute, and the tank has a sealed package.
l Resistance to air flow: large and medium tanks <18.0 mm water column (176 pa); Small tank < 12.0 mm water column (118 pa).
l Anti-sulfur dioxide (SO2) protection time (minimum effective protection time) : small tank - not less than 20 minutes, SO2 concentration of 8 mg/l (volume concentration of 0.3%, flow rate of 30 L/min).
l Adsorption of acidic substances (HF) performance: acidity is 74.3PPMv, flow rate of 6 L/min SF6 pyrolysis gas and air mixture into the small tank, adsorption 300 minutes after the gas acidity is 0.35PPMv.
l The adsorption rate of impurity sulfur decafluoride (S2F10O) : the concentration of standard gas S2F10O is 5200PPMv, the flow rate is 300 ml/min, and after 56 minutes of adsorption in the small tank, the permeable gas concentration is zero and the permeable rate is zero.
l The adsorption rate of impurity sulfuryl fluoride (SO2F2) : the concentration of standard gas SO2F2 is 9586 PPMv, the flow rate is 300 ml/min, and after 56 minutes of adsorption in a small tank, the permeable gas concentration is 131.5PPMv and the permeable rate is 1.4%.
l Weight: below 200 ~ 300g.
Service guarantee
l Provide on-site training guidance and carry out on-site demonstration operation.
l Provide detailed instructions and user guidance in Chinese.
l One year free warranty, lifelong spare parts support and maintenance.
l Hotline 365 days to answer the user's consultation.
