Positive Pressure air Breathing Apparatus (Winfoss-G6)
Positive pressure breathing apparatus
Supported platform: Windows/Linux/Unlix
Software size: 10M
Brand: WINFOSS
Model: Winfoss-G6
The gas supply device is equipped with a new type of gas supply valve with small volume, light weight and stable performance.
The pressure reducing valve device is equipped with a residual gas alarm.
Easy to maintain, comfortable to wear, stable performance.
Ergonomic design, comfortable to wear, no odor.
High voltage interface in accordance with relevant international standards.
产品详情/ Product details

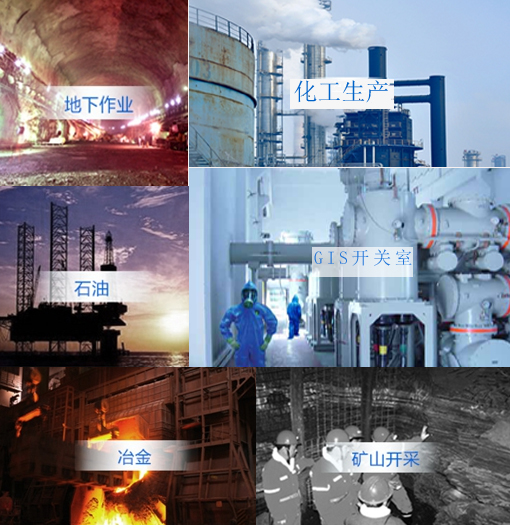

Winfoss-G6 (Positive Pressure Air Breathing Apparatus) is a self-contained open air breathing apparatus, which is mainly used in fire fighting, chemical industry, ships, petroleum, smelting, factories and mines, etc. So that firefighters or emergency rescue personnel can safely fire, rescue and rescue work in the harsh environment full of smoke, gas, steam or hypoxia. Especially in the power SF6 switch station, when the explosion-proof film breaks or other large area of SF6 gas leakage, the self-contained air positive pressure breathing apparatus configured in the switch station is conducive to helping on-site personnel escape quickly or emergency repair. At the same time, it can be used in emergency situations such as fire.
Positive Pressure air Breathing Apparatus (Winfoss-G6)
Imported quality assurance, ergonomic design, comfortable to wear, no smell!
summarize
Winfoss-G6 (Positive Pressure Air Breathing Apparatus) is a self-contained open air breathing apparatus, which is mainly used in fire fighting, chemical industry, ships, petroleum, smelting, factories and mines, etc. So that firefighters or emergency rescue personnel can safely fire, rescue and rescue work in the harsh environment full of smoke, gas, steam or hypoxia. Especially in the power SF6 switch station, when the explosion-proof film breaks or other large area of SF6 gas leakage, the self-contained air positive pressure breathing apparatus configured in the switch station is conducive to helping the on-site personnel escape quickly or emergency repair; At the same time, it can be used in emergency situations such as fire.
Product characteristics
l This series of air breathing apparatus is equipped with a wide field of view, bright, good airtight full cover.
l The gas supply device is equipped with a new type of gas supply valve with small volume, light weight and stable performance.
l Use high-strength backplane and high quality high-pressure gas cylinders with high safety factor.
l The pressure reducing valve device is equipped with residual gas alarm.
l With light weight, small size, use.
l Easy to maintain, comfortable to wear, stable performance.
l Comply with GA124<< positive pressure fire air breathing apparatus >> requirements.
Apply
l For emergency escape, the device cannot be used underwater. The duration of oxygen supply depends on the user's gas reserve. With a windpipe up to 30 meters in length, the user can place the back on the ground and walk around freely. The alarm system on the mask can send an alarm when the air volume is low. A special support belt can be used to secure the trachea.
l is equipped with a four-way valve for a second person to work at the same time, and also with an alarm system. The trachea can also be fixed with a special support belt. The valve can also be used to connect the air pipe to extend the oxygen supply time. When the air tube (5.5bar) is used, the gas supply to the cylinder is automatically turned off.
l The inflator can also be configured according to the user's needs.

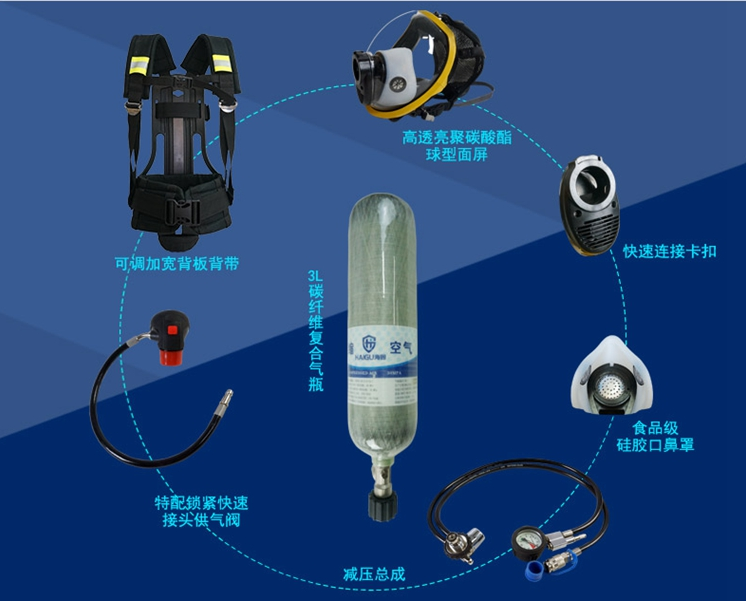

constitute

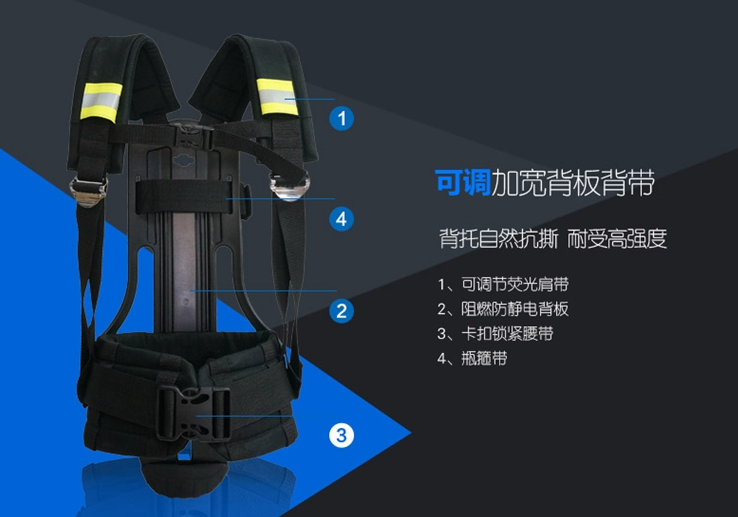

l Back frame with fixed strap: The back frame is made of glass fiber or polyethylene and is ergonomically designed. The overall design allows users to easily operate the entire device with one hand. The back frame can carry different sizes of gas cylinders from 110mm to 170mm, and two 110mm gas cylinders can be carried simultaneously through a special strap.
l Carbon fiber aluminum alloy liner conforms to the material high-pressure cylinders.

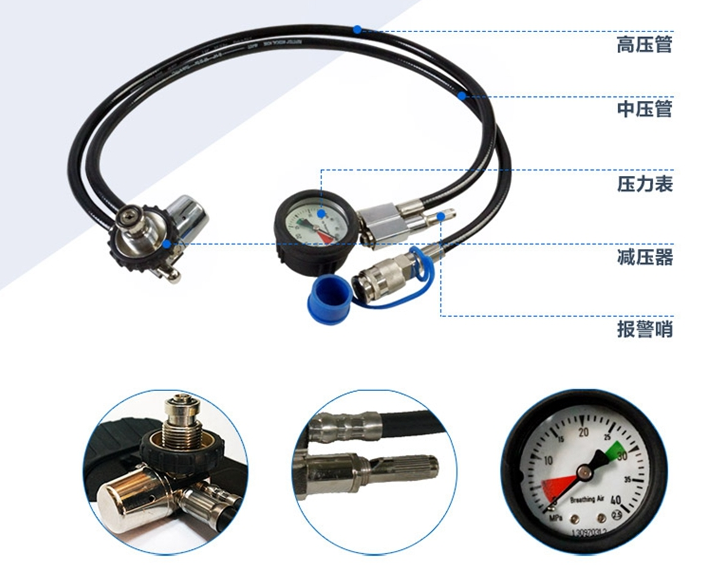

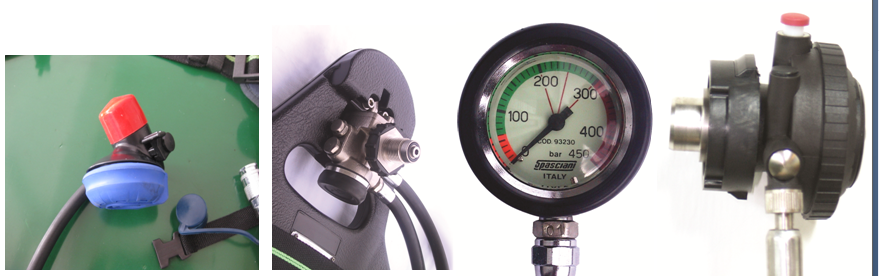

l Pressure reducing valve: made of corrosion-resistant copper. Regardless of the pressure of the cylinder, the pressure reducing valve can deliver gas at constant pressure (5.5bar). When the cylinder pressure is reduced to 55+/-5bar, a special device increases the output pressure of the cylinder to 8bar, thus causing the alarm system of the supply valve to go off
Open, the pressure reducing valve can be connected with the following components.
l 1. High voltage interface in line with relevant international standards.
l 2. Special high pressure tube connected with pressure gauge.
l 3. Medium pressure valve connected to the air supply valve.
l 4. Auxiliary gas outlet.
l Air supply valve with alarm system: fiberglass, the button that locks the valve opens on the first exhalation.
l Mask: The device uses a mask. For more information, please refer to the related instructions.
Technical parameter
Gas bottle | Breathing apparatus | |||||
capacity | stress | reserve | diameter | dimension | weight | Air supply time |
L | bar | NI | mm | mm (1) | kg (2) | min (3) |
4 | 200 * | 800 | 110 | 310× 57 | 2.3 | 26 |
7 | 200 * | 1400 | 140 | 310× 71 | 3.3 | 46 |
6 | 200 (BS) | 1200 | 140 | 310× 66 | 4.21 | 40 |
6 | 300 * * * | 1670 * * * | 157 | 310× 66 | 5.22 | 55 |
1) The size is the measurement result of the device lying flat on the ground.
2) Total weight of full hood and cylinder (estimated).
3) The average flow rate is 30 L/min (one user).
l High voltage port UNI4410.
l High voltage interface DIN477 or NF.
l When the pressure is 300bar, calculate the formula P× of available gas; V is no longer applicable, must consider the compressed air factor, that is, reduce the available air volume by 8%.
disposition
l 1 gas cylinder.
l 1 set of pressure reducing valve.
l 1 pressure gauge with high pressure pipe.
l One medium pressure gas pipe with a safety quick-insert port.
l 1 set of air valve with sound alarm system.
l Full cover 1 pair.
Service guarantee
l Provide on-site training guidance and carry out on-site demonstration operation.
l Provide detailed instructions and user guidance in Chinese.
l One year free warranty, lifelong spare parts support and maintenance.
l Hotline 365 days to answer the user's consultation.
