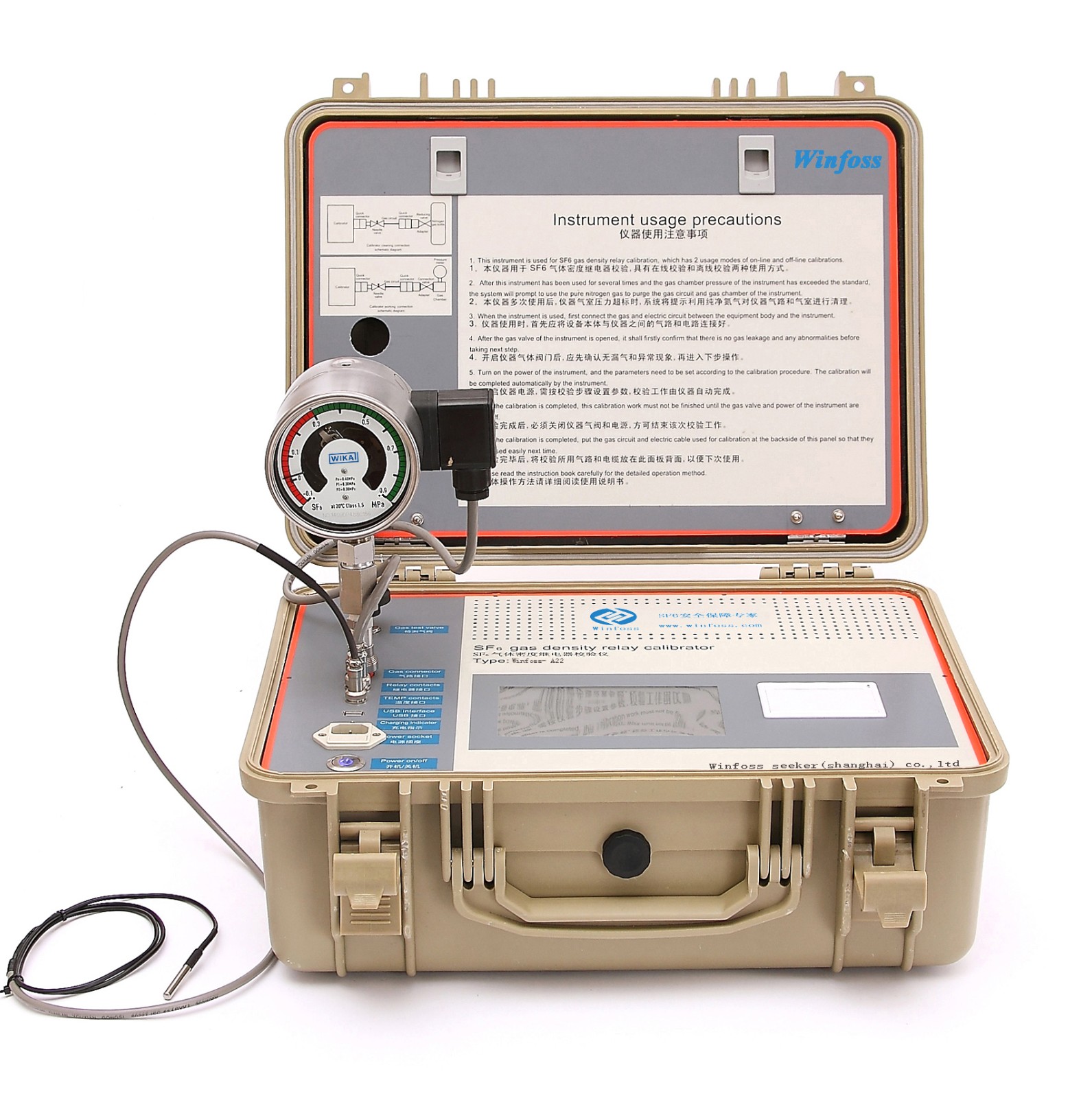

SF6 Density Relay calibrator (Winfoss-A22)
SF6 density relay calibrator
Supported platform: Windows/Linux/Unlix
Software size: 10M
Brand: WINFOSS
Model: Winfoss-A22
Pressure measurement range: 0-1.000MPa
Measurement accuracy: better than 0.2
Temperature measurement range: -35-100℃
Temperature measurement error: ≤±1.0℃
Working principle: Built-in air bag, using cylinder method to automatically pressurize, without external air source
产品详情/ Product details
F6 density relay calibrator (Winfoss-A22) is an intelligent automatic SF6 emission free environmental protection type built-in airbag density relay calibrator. The instrument adopts single-cycle instruction microcomputer technology, the running speed is 10 times that of ordinary single chip microcomputer. It can verify the SF6 density relay with pointer contact output and intelligent current output on the spot, and capture the action of density relay in real time by interrupt mode, so the measurement of the instrument is more accurate and timely. This instrument is a portable calibration instrument that can carry out standard conversion of SF6 gas pressure at any ambient temperature, and it can also check SF6 density meter and pressure gauge.
SF6 Density Relay calibrator (Winfoss-A22)
Fully automatic completion, zero emission of SF6 gas, health, environmental protection,Configure a full set of connectors corresponding to various switches at home and abroad, worry!
summarize
SF6 density relay calibrator (Winfoss-A22) is an intelligent automatic SF6 emission free environmental protection type built-in airbag density relay calibrator. The instrument adopts single-cycle instruction microcomputer technology, the running speed is 10 times that of ordinary single chip microcomputer. It can verify the SF6 density relay with pointer contact output and intelligent current output on the spot, and capture the action of density relay in real time by interrupt mode, so the measurement of the instrument is more accurate and timely. This instrument is a portable calibration instrument that can carry out standard conversion of SF6 gas pressure at any ambient temperature, and it can also check SF6 density meter and pressure gauge.
In a closed container, the SF6 gas pressure at a certain temperature can represent the density of SF6 gas. It is customary to take the SF6 gas pressure at 20℃ as the standard value. In the field verification, under different ambient temperatures, the measured pressure value should be converted to its corresponding pressure value at 20℃ to judge the performance of SF6 density relay.
Winfoss-A22 Emission-free environment-friendly SF6 density relay calibrator can complete the verification process automatically, without any pollution to the environment, easy to use and accurate measurement, Chinese menu operation is simple and clear.
Functional characteristics
l The instrument has built-in capsule replacement gas chamber, the calibration range covers the full range of 0-1Mpa, the calibration process is smooth and smooth, and it is completed in one time without interrupting the air replenishment, and SF6 gas is zero emission during the whole calibration process.
l Capsule replacement air chamber is built into the instrument to achieve static seal instead of dynamic seal and improve the sealing of the instrument.
l During the verification process, SF6 gas is circulating-no emission to the atmosphere, more environmentally friendly and safer.
l The structure adopts double seal design of hand valve and self-sealing valve, which is easy to operate and can prevent water and air from entering the pipeline. There is no SF6 emission and leakage before and after verification.
l Air replenishing device has simple structure and easy operation. Cleaning and replenishing the air can minimize the internal water and impurity gas content.
l can automatically identify density relay normally open type and normally closed; Can verify single signal (single alarm, single block), single alarm single block and single alarm double block density relays.

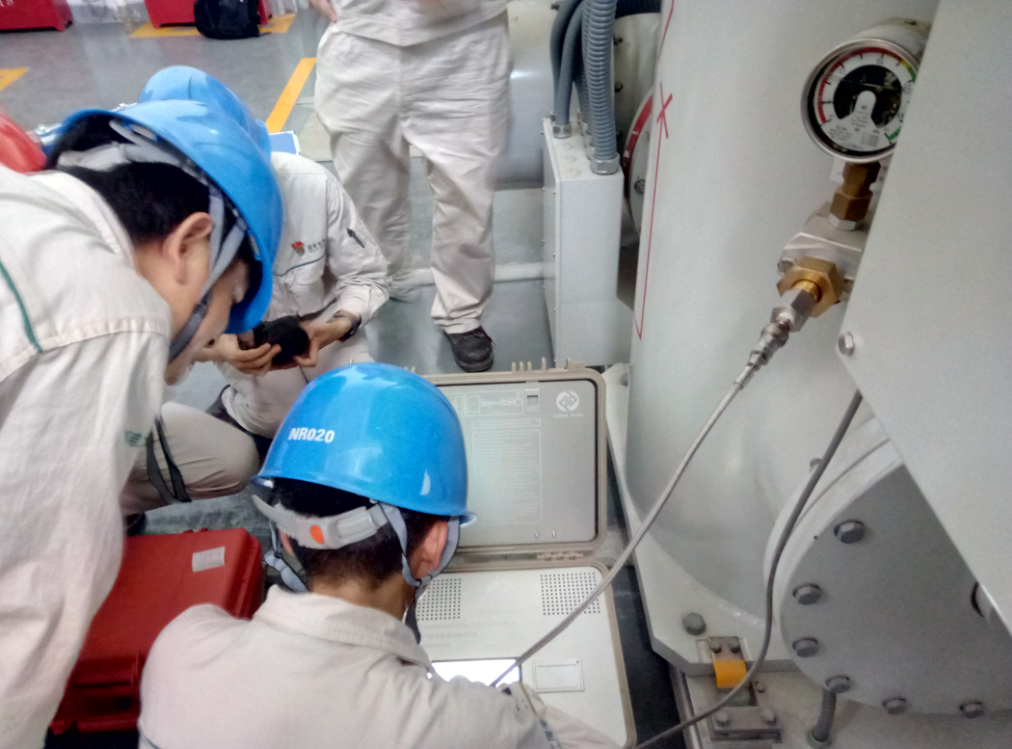

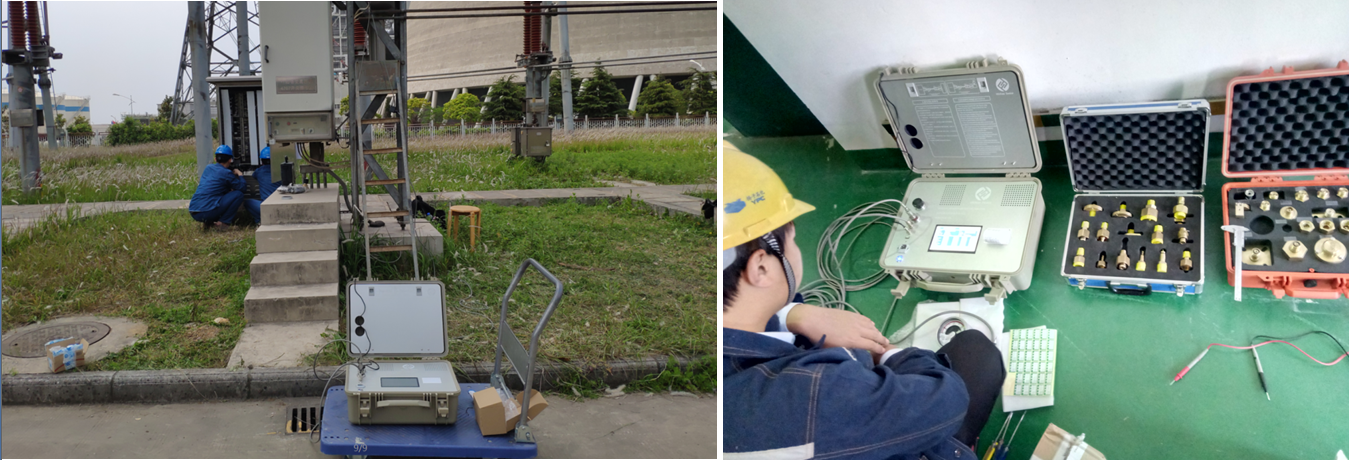

l Equipped with a full set of transition connectors, the density relays of most switch models can be verified on-site online without disassembly
Technical parameter
Measurement accuracy: | Superior to0.2 |
Pressure display resolution: | 0.001 MPa |
Pressure measurement range: | 0-1.000 MPa |
Temperature measurement range: | - 35-100 ℃ |
Temperature measurement error: | ≤ ±1.0℃ |
How it works: | Automatic cylinder pressure, built-in air bag, no external air source |
SF6 gas emissions | Total check procedureSF6Zero gas emission |
Display mode | 7 inch industrial high definition color touch screen |
Mode of operation | Dual use of touch screen and physical buttons |
Data storage | Can be saved100Group measurement data, calibration data can be stored for life |
Data printing | With high-speed micro thermal printer, the verification result can be printed after the verification. |
Communication mode | built-inUSBInterface for easy data sharing. |
Working power supply: | Both AC and DC AC/DC:220V±10% 50Hz (Built-in large capacity lithium battery pack24V 20Ah) |
Overall power consumption | The <50W |
Check time: | Full range check time≤ 5minThe air pressure adjustment process is smooth. |
Check principle
The pressure of the gas enclosed in the container changes with the temperature,In order to have a common standard to compare,We usually put20The relative pressure value of ℃ is used as the standard value. When the density meter is checked, it is converted to the corresponding relationship between pressure and temperature20The equivalent pressure value at ℃,And then compare.
l Block return value check:
When the SF6 density relay needle is zero, the relay is charged at a slow and uniform speed. When the SF6 density relay emits a locking action, the pressure value at the ambient temperature is recorded and converted to the equivalent pressure value at 20℃, which is the locking return value of the SF6 density relay.
l Alarm return value check:
The SF6 density relay is charged at a slow and uniform speed. When the SF6 density relay sends an alarm action, the pressure value at the ambient temperature is recorded and converted to the equivalent pressure value at 20℃, which is the alarm return value of the SF6 density relay.
l Overpressure recovery value check:
Charge the SF6 density relay at a slow and uniform speed. When the SF6 density relay sends an overpressure signal, it starts to deflate the SF6 density relay at a slow and uniform speed. When the relay overpressure alarm signal is sent, record the pressure value at the ambient temperature at that time and convert it to the equivalent pressure value at 20℃. This equivalent pressure value is the overpressure recovery value of the SF6 density relay.
l Alarm value check:
At ambient temperature, when the pressure value in the SF6 density relay is higher than the alarm recovery value, it starts to release gas at a constant speed and slowly. When the SF6 density relay sends an alarm signal, the pressure value under the ambient temperature at that time is recorded and converted to the equivalent pressure value at 20℃, which is the alarm value of the SF6 density relay.
l Blocking value check:
The SF6 density relay is vented at a slow and uniform speed. When the SF6 density relay sends a locking signal, the pressure value at the ambient temperature is recorded and converted to the equivalent pressure value at 20℃, which is the locking value of the SF6 density relay.
l Overpressure check:
toSF6Density relays are slowly and uniformly charged whenSF6When the density relay sends an overpressure signal, it records the pressure value at the ambient temperature at that time and converts it to20The equivalent pressure value at ℃, the equivalent pressure value isSF6The overpressure value of the density relay.
Product configuration
l Calibrator host: 1 set
l Connecting air pipes with self-sealing at both ends: 1
l Check point sampling wire: 1
l Temperature probe: 1
l Full set of transition joints: 1 set
l Special toolbox: 1
l Power cable: 1
Service guarantee
l Provide on-site training guidance and carry out on-site demonstration operation.
l Provide detailed instructions and user guidance in Chinese.
l One year free warranty, lifelong spare parts support and maintenance.
l Hotline 365 days to answer the user's consultation.
