SF6 Adapter Kit (Winfoss-A6)
SF6 adapter kit
Supported platform: Windows/Linux/Unlix
Software size: 10M
Brand: WINFOSS
Model: Winfoss-A6
All kinds of SF6 circuit breakers can be switched and installed, and the operation is simple and convenient.
Suitable for all kinds of imported and domestic SF6 switches, GIS adapters.
Suitable for all kinds of SF6 electrical equipment vacuum, SF6 recovery and inflation joints.
Suitable for all kinds of imported and domestic moisture meter transition joints.
The application of metal titanium filter can filter out 99.99% of granular impurities in the size of 5 microns and purify the air source.
产品详情/ Product details

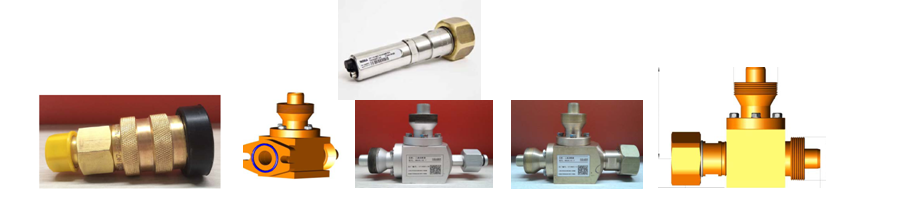

SF6 circuit breaker switching filter device (Winfoss-A6) is our company applied metal titanium filter, according to different SF6 circuit breaker interface models developed and produced. It can filter out 99.99% of granular impurities in the size of 5 microns, purify the air source, and ensure the test accuracy and service life of the equipment. It can also transfer various SF6 circuit breakers, which is very convenient.
The running SF6 circuit breaker will pollute the test equipment due to the powdered particulate impurities produced by arc decomposition, and the cleaning work of the test equipment and the test pipeline is troublesome and time-consuming. If a set of safe and reliable transfer filter device can be installed on the detection port, this problem can be solved. The SF6 circuit breakers used in the power system are different, and they must be equipped with various interfaces during testing, and there is no interchangeability. According to the situation that the sulfur hexafluoride circuit breakers used by the power sector are different, they are equipped with different connection interfaces. Whether imported or domestic SF6 circuit breakers, no matter what kind of micro-water measuring equipment is used, it can be connected to all kinds of circuit breakers by the transfer interface.

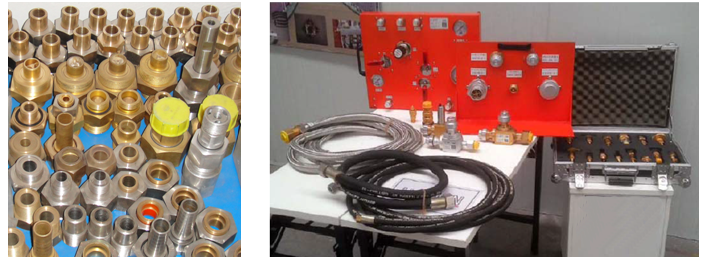

SF6 Adapter Kit (Winfoss-A6)
Metal titanium material,Suitable for all kinds of import and domestic specificationsSF6Switch,GISAdapter!
summarize
SF6 adapter kit (Winfoss-A6) is the company's application of metal titanium filter, according to different SF6 circuit breaker interface models developed and produced. It can filter out 99.99% of granular impurities in the size of 5 microns, purify the air source, and ensure the test accuracy and service life of the equipment. It can also transfer various SF6 circuit breakers, which is very convenient. The running SF6 circuit breaker will pollute the test equipment due to the powdered particulate impurities produced by arc decomposition, and the cleaning work of the test equipment and the test pipeline is troublesome and time-consuming. If a set of safe and reliable transfer filter device can be installed on the detection port, this problem can be solved. The SF6 circuit breakers used in the power system are different, and they must be equipped with various interfaces during testing, and there is no interchangeability. According to the situation that the sulfur hexafluoride circuit breakers used by the power sector are different, they are equipped with different connection interfaces. Whether imported or domestic SF6 circuit breakers, no matter what kind of micro-water measuring equipment is used, it can be connected to all kinds of circuit breakers by the transfer interface.
SF6 adapter is mainly used for GIS electrical equipment to fill or recover SF6 gas, Weavers detection according to the current situation of various switch circuit breakers used in the power sector, respectively equipped with a variety of different adapters, whether imported or domestic SF6 circuit breakers, can be connected to all kinds of circuit breakers through the adapter. If there are special requirements, the company can be processed according to the actual needs of users.
Functional characteristics
l Various specifications imported and domestic SF6(sulfur hexafluoride) switches, GIS adapters.
l Suitable for all kinds of SF6 electrical equipment vacuum, SF6(sulfur hexafluoride) recovery and inflatable joints.
l Suitable for all kinds of imported and domestic moisture meter transition joints.

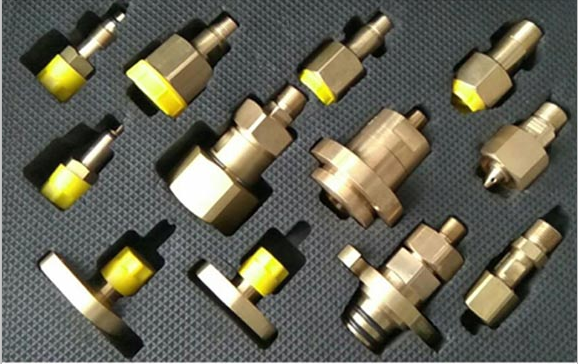

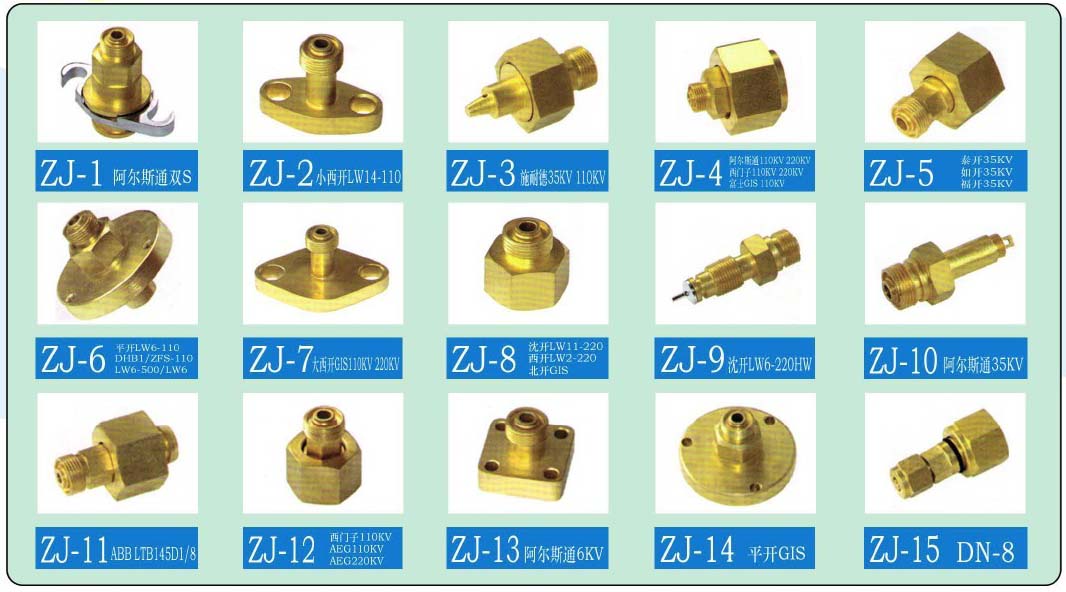

Some product pictures and corresponding switch models
Product name | Specification and model | unit | quantity | remark |
Alstom double S | WINFOSS-ZJ01 | only | one | For connectionGISSwitchgear and SF6 gas recovery unit/Charging line |
Minor Sai KaiLW14-110 | WINFOSS-ZJ02 | only | one | — — — — — — |
Schneider35kV,110 kV | WINFOSS-ZJ03 | only | one | — — — — — — |
Alstom110 kV,220 kV Siemens110 kV,220 kV FujiGIS110 kV | WINFOSS-ZJ04 | only | one | Used to connect GIS switchgear to SF6 gas recovery unit/charging line |
Tai Kai35kV Sukkai35kV Phuc Khai35kV | WINFOSS-ZJ05 | only | one | Ibid. |
Equally openLW6—110/DHB1/ZFS-110 LW6-500/LW6 | WINFOSS-ZJ06 | only | one | — — — — — — |
Great Western KaiGIS110 kV,220 kV | WINFOSS-ZJ07 | only | one | — — — — — — |
Shen KaiLW11-220 Sai KaiLW2-220 BeikaiGIS | WINFOSS-ZJ08 | only | one | — — — — — — |
Shen KaiLW6-220HW | WINFOSS-ZJ09 | only | one | — — — — — — |
Alstom35kV | WINFOSS-ZJ10 | only | one | — — — — — — |
ABB LTB145D 1/8 | WINFOSS-ZJ11 | only | one | — — — — — — |
Siemens110 kV AEC110 kV, 220 kV | WINFOSS-ZJ12 | only | one | — — — — — — |
Alstom6kV | WINFOSS-ZJ13 | only | one | — — — — — — |
Equally openGIS | WINFOSS-ZJ14 | only | one | — — — — — — |
DN8 | WINFOSS-ZJ15 | only | one | — — — — — — |
DN20 | WINFOSS-ZJ16 | only | one | — — — — — — |
Cylinder joint | WINFOSS-ZJ17 | only | one | — — — — — — |
1/2 gas pipe connector | WINFOSS-ZJ18 | only | one | — — — — — — |
Instrument box | only | one | — — — — — — |
