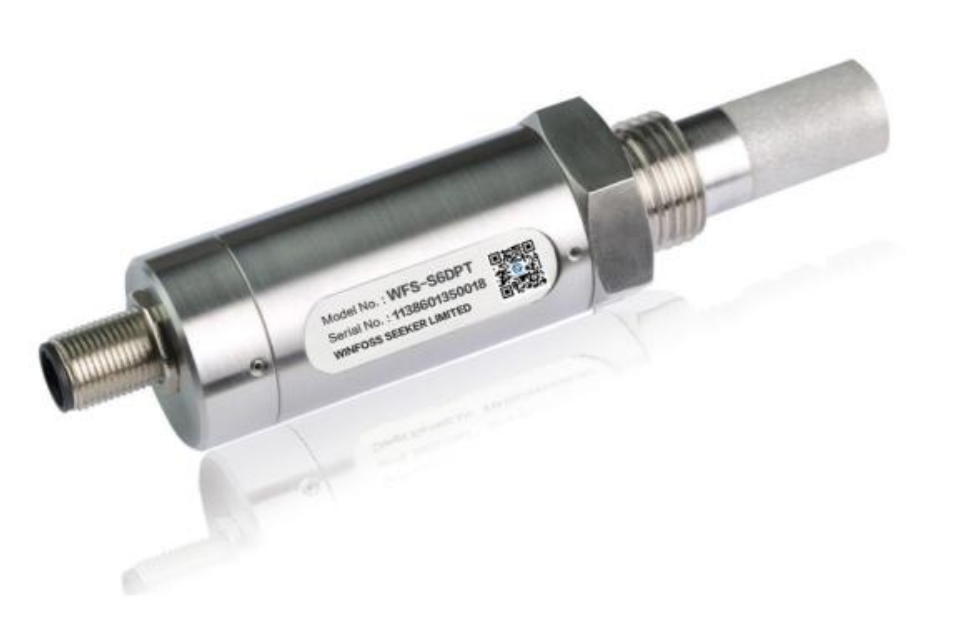

SF6 Dew point and pressure temperature transmitter
SF6 Dew point and pressure temperature transmitter
Supported platform: Windows/Linux/Unlix
Software size: 10M
Brand: WINFOSS
Model: WFS-S6DPT
Measuring range: lu point -80 ~ +20℃
lu point accuracy (air or nitrogen) ±2℃TD
Temperature accuracy: 0... +50℃ ±0.3℃ (standard)
Pressure accuracy: @23℃ ±0.3%FS, pressure drift with temperature: ±0.01bar/10℃
Density accuracy: 0... +40℃ ±1%FS, -40... +60℃ ±2%FS
产品详情/ Product details
SF6 Dew point and pressure temperature transmitter (WFS– S6DPT) adopts new material polymer film sensor technology, which has the advantages of high humidity response of general polymer film sensors, and has superior low humidity measurement response level. The sensor circuit design can automatically compensate for drift caused by temperature, pollution, and aging, ensuring long-term reliable and high-precision measurement. Combined with the high stability of the new material polymer film sensor technology, the recalibration cycle is extended to more than two years. The innovative temperature compensation algorithm and multi-point temperature compensation check before delivery greatly improve the temperature drift of the sensor and ensure high precision measurement in a wide temperature range.
Performance/Advantage
l New polymer film sensor technology and MEMs-based pressure sensor;
l can simultaneously monitor dew point and on-line pressure (jue to pressure 0 … 17 bar);
lGouda ± Accuracy measurement of TD at 2℃ (see figure below);
l High response speed and excellent long-term stability;
l Anti-cold condensation, anti-particulate pollution, oil vapor and most chemicals;
l Multi-point temperature compensation check before delivery;
lExcellent anti-interference ability;
l IP65 protection grade, even in harsh environments can provide good protection;
lThrough the standard RS485 interface and powerful service software, to provide comprehensive sensor Settings, data transmission, software upgrade and maintenance functions;
Technical index
Measurement parameter
l lu point measurement range -80 … +20℃TD
l Pressure measurement range, jue to pressure 0 … 17 bar
l Temperature measuring range -40 … + 100 ℃
l SF6 or SF6/N2 mixture density 0 … 100 kg/m
Measurement accuracy
l lu point accuracy (air or nitrogen) ± 2℃TD (see figure below)
l Temperature accuracy
0 … +50℃ ± 0.3℃ (standard)
-40… 0℃ and +50… +100℃ ± 0.5℃ (standard)
l Pressure accuracy @23℃ ± 0.3% FS
lPressure drift with temperature ± 0.01 bar / 10 ℃
l Density accuracy (pure SF6, 0 … 17 bar)
0 … +40℃ ± 1%FS
-40… +60℃ ± 2%FS
Response time 63% [90%], 20℃, 1bar(gauge), 4L/min
l Dew point sensor
-50 -> -10℃TD 10 seconds [20 seconds]
-10 -> -50℃TD 30 seconds [2 minutes]
l Pressure response time < 1 s

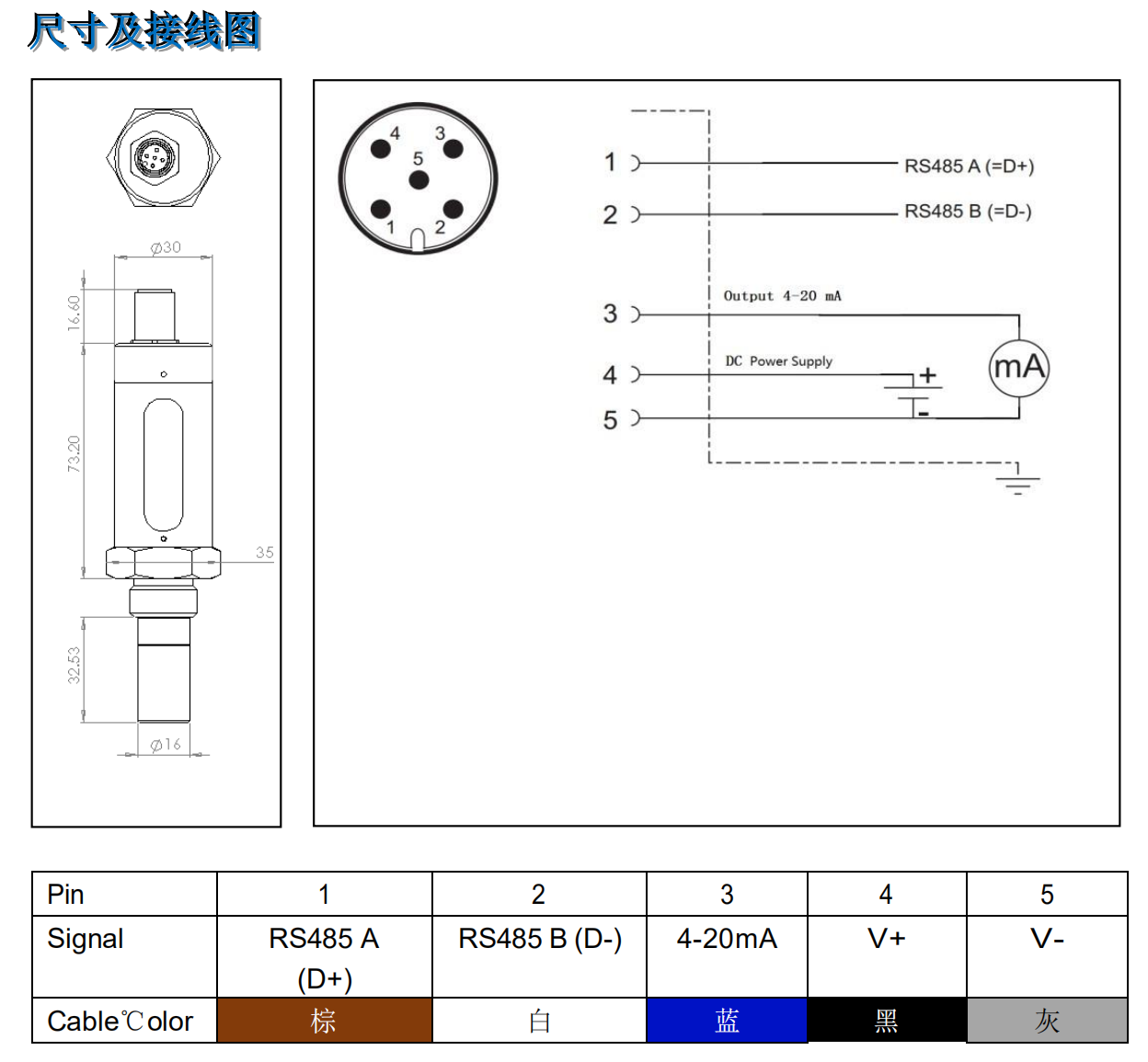

exportation
Current output (range variable)4… 20mA (3-wire)
Current output resolution 0.002mA
Current output temperature drift 0.01% of span /℃
Current output load up to 500ohm
Digital output RS485 Modbus RTU
Connector 5-pin M12
Power source
Normal measurement 16… 30V /30mA + 4-20mA current output
Working environment
Operating temperature -20… + 70 ℃
Storage temperature -30… + 80 ℃
Relative humidity 0… 95%RH
Sample gas flow rate >1 L/min
Pressure environment 50 bar
other
Case stainless steel
Protection level IP65
Connection of mechanical parts ISO G 1/2”
Stainless steel mesh filter Filtration grade30~45um
Electromagnetic compatibility in accordance with IEC 61326-1
Service guarantee
l Provide on-site installation, commissioning and training guidance, and carry out on-site demonstration operation.
lProvide detailed instructions and user guidance in Chinese.
l One year free warranty, lifelong spare parts support and maintenance.
l Hot lineAnswer users' inquiries 365 days a day.
