SF6 Decomposition Analyzer (Winfoss-P11)
SF6 decomposition analyzer
Supported platform: Windows/Linux/Unlix
Software size: 10M
Brand: WINFOSS
Model: Winfoss-P11
Minimum detection: 0.1ppm
Stability: 20℃~40℃, the maximum zero drift ≤±0.1ppm
Accuracy: Measurement ≤2ppm, error ≤±0.1ppm, measurement > 2ppm, error ≤±0.2ppm
Measuring range: SO2+SOF2:0 ~ 100μL/L, H2S: 0 ~ 100μL/L,
Response time: Maximum 5min
产品详情/ Product details

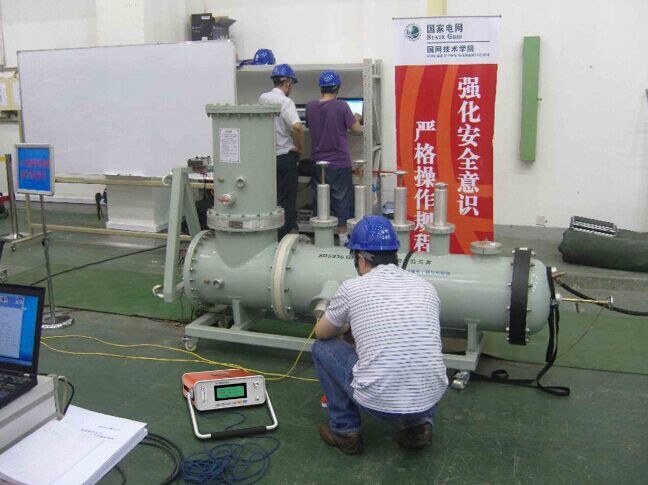

The SF6 decomposition analyzer (Winfoss-P11) simultaneously detects SO2, H2S, CO and other decomposers, and can quickly detect and determine the early failure of SF6 electrical equipment (circuit breakers, transformers, transformers, GIS and bushings, etc.) in the field. This instrument can be applied to SF6 electrical equipment in power, railway, metallurgy and petrochemical industries. At present, electrical tests commonly used at home and abroad are generally carried out in the state of power failure, and the detection rate of endangering safety insulation is low. The instrument is intelligent, with high sensitivity, good stability, convenient operation, and can automatically diagnose and put forward treatment suggestions according to the detected concentration, providing a simple and effective means for the early detection of internal faults of SF6 electrical equipment.
SF6 Decomposition Analyzer (Winfoss-P11)
Alpha high-performance, high-resolution electrochemical sensors, embedded microcomputer technology;Fault location, simultaneous measurement of multiple decomposers!
summarize
The SF6 decomposition analyzer (Winfoss-P11) simultaneously detects SO2, H2S, CO and other decomposers, and can quickly detect and determine the early failure of SF6 electrical equipment (circuit breakers, transformers, transformers, GIS and bushings, etc.) in the field. This instrument can be applied to SF6 electrical equipment in power, railway, metallurgy and petrochemical industries. At present, the electrical tests commonly used at home and abroad are generally carried out in the state of power failure, and the detection rate is low for endangering the safety insulation. The instrument is intelligent as a whole, with high sensitivity, good stability, convenient operation, and can automatically diagnose and put forward treatment suggestions according to the detected concentration, providing a simple and effective means for the early detection of internal faults of SF6 electrical equipment.
Functional characteristics
l New concept: simultaneous detection, respectively showing the representative breakdown products of SF6 electrical equipment internal faults. SO2 and H2S.
l Superior performance: high accuracy, good stability, the minimum detection of up to 0.1μ l/L, to achieve early detection of internal faults.
l Rapid detection: The selection of high-performance detectors and advanced detection process, the entire detection process can be completed in 1 minute.
l Sound function: unique fault diagnosis function, and can put forward suggestions.
l To achieve data storage, management, transmission.
l Gas flow is adjustable and can be displayed.
l Easy to use: simple operation steps, clear interface, self-supplied power supply, no need to calibrate within a year.
l Good for environmental protection: small gas consumption, only 200 ~ 300ml per test, and equipped with exhaust gas collection bag, reducing environmental pollution.
Technical parameter
item | index |
Minimum detection amount | 0.1 parts per million |
stability | Temperature change20℃~ 40At ° C, the maximum zero drift. ±0.1 parts per million |
accuracy | Measurement ≤2ppmWhen, error ≤ ±0.1 parts per million |
Measurements >2ppmWhen, error ≤ ±0.2 parts per million | |
Measuring range | SO2+SOF2:0 ~ 100μ L/L; |
H2S: 0 ~ 100μ L/L | |
HF: 0 ~ 20μ L/L | |
CO: 0 ~ 1000μ L/L | |
Tolerance of measurement | SO2+SOF2≤ 10μ L/L,± 1μ L/L; SO2+SOF2>10μ L/L,± 10% |
H2S≤ 10μ L/L,± 1μ L/L; H2S>10μ L/L,± 10% | |
CO≤ 10μ L/L,± 0.5 & mu; L/L; CO>10μ L/L,± 1.0 & mu; L/L | |
HF: ≤ 10μ L/L,± 0.5 & mu; L/L; HF>10μ L/L,± 1.0 & mu; L/L | |
Resolution | SO2+SOF2≤ 0.1 & mu; L/L, H2S≤ 0.1 & mu; L/L, |
CO≤ 0.5 & mu; L/L, HF≤ 0.1 & mu; L/L | |
dew-point | ± 0.5℃ Test range: -80℃ ~ +20℃ |
Response time | Not more than5min |
stress | Instrument piping under pressure not less than1MPa |
Temperature range | -40℃~+50 ℃ |
Humidity range | ≤95%RH |
Atmospheric pressure | 86kPa~106kPa |
Intake pressure | ≤1.0 Mpa |
Gas flow | 150± 10ml/min |
Self-contained power supply | Built-in rechargeable lithium battery, can work continuously after full10More than hours |
appearance | 252× 310× 98mm |
weight | 2.5 kG |
communication | USB interface or 232 |
Product configuration
l SF6 decomposition analyzer 1 set
l One power cable
l Aluminum alloy shockproof box 1
l 1 Chinese manual
l Factory inspection report and other user data 1 copy
l Test one pipe
Service guarantee
l Provide on-site training guidance and carry out on-site demonstration operation.
l Provide detailed instructions and user guidance in Chinese.
l One year free warranty, lifelong spare parts support and maintenance.
l User file information management, customer service department every semi-annual return visit and tracking service.
l Hotline 365 days to answer the user's consultation.
