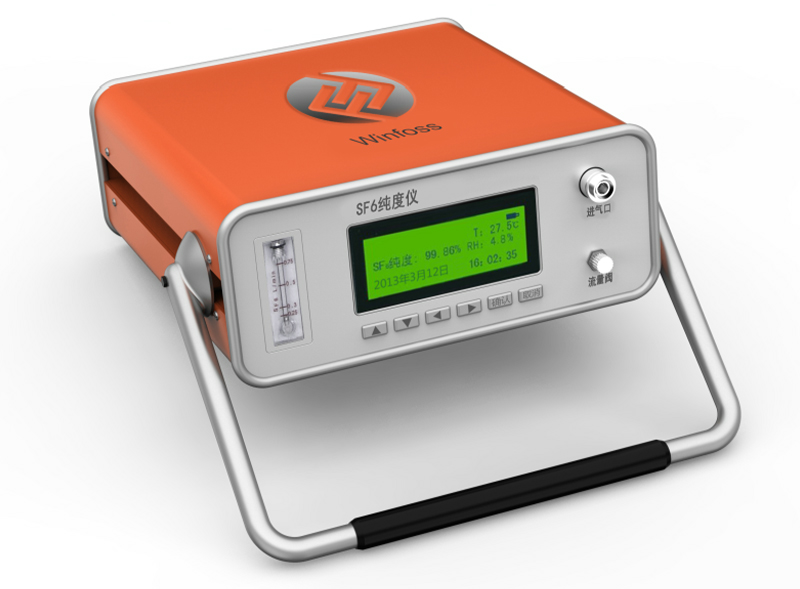

SF6 Purity Analyzer (Winfoss-P16)
SF6 purity analyzer
Supported platform: Windows/Linux/Unlix
Software size: 10M
Brand: WINFOSS
Model: Winfoss-P16
Measuring range: 0%~100%.
Measurement accuracy: ±0.5%.
Measurement time: <2 minutes.
Power supply: AC 220V, built-in rechargeable battery.
Battery performance: Charging time of more than 20 hours, can be used for 10 hours.
产品详情/ Product details
The SF6 Purity analyzer (Winfoss-P16) is mainly used to measure the SF6 gas purity of SF6 air SF6/N2 mixture. The analyzer has a battery charging indicator and a built-in charger. The detection module can quickly and accurately measure the purity of SF6, and under normal circumstances, its life can be up to ten years.
SF6Purity analyzer(Winfoss-P16)
Import quality assurance; Excellent technology, long life guarantee; Light, easy to use, no training can be mastered!
summarize
SF6Purity analyzer (Winfoss-P16It is mainly used for measurementSF6airSF6/N2Mixed gasSF6Gas purity. The analyzer has a battery charging indicator and a built-in charger. Detection components can be quickly and accurately measuredSF6Purity, under normal circumstances, its life can reach ten years. This device is suitable for testingSF6Equipment (cables, switches)SF6Gas purity can also be used in applications where several background gases are present.
Product characteristics
l Portable design: The instrument is lighter, easy to carry and use.
l Fast measurement: no need to wait after the instrument is turned on, immediately measure, quickly get the purity value.
l Fast gas saving: The gas consumption is only about 0.5L (101.2kPa) when measured.
l Self-locking joint: The use of Germany imported self-locking joint, safe and reliable, no air leakage.
l Data storage: Large capacity design, up to 100 groups of test data can be stored.
l Clear display: the LCD screen directly displays the purity value, time and date, battery power and other content.
l RS232 interface: It can be connected with serial port printer for data printing.
l Built-in power supply: built-in 4Ah rechargeable lithium battery, a sufficient time can work for 10 hours continuously.
Technical parameter
purity | Measuring range | 0% ~ 100% |
Measurement accuracy | ±0.5% | |
Measuring time | < 2Minutes. | |
Ambient temperature | -40° C ~ +60℃ | |
Ambient humidity | 0~100% RH | |
Power source | AC 220V | |
Built-in rechargeable battery | ||
Battery performance | Charging time20More than hours, can be used10Hour (s) | |
weight | 3kilogram | |
dimension | 250×100×300mm | |
Operating temperature | -30° C ~ +50℃ | |
Product configuration
l 1 SF6 purity analyzer.
l Test 1 pipe.
l One power cable.
l Aluminum alloy shockproof box 1.
l 1 Chinese manual.
l Factory inspection report and other user data 1 copy.
Service guarantee
l Provide on-site training guidance and carry out on-site demonstration operation.
l Provide detailed instructions and user guidance in Chinese.
l One year free warranty, lifelong spare parts support and maintenance.
l User file information management, customer service department every semi-annual return visit and tracking service.
l Hotline 365 days to answer the user's consultation.
